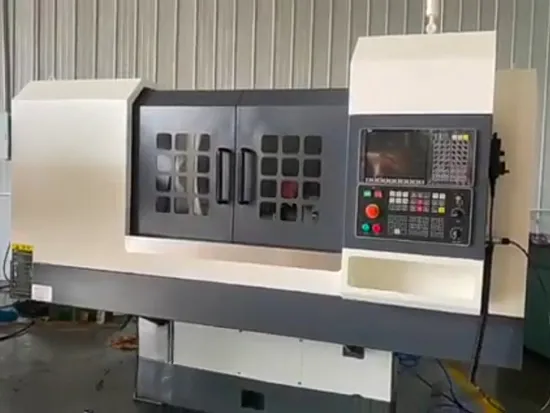

Hot Sale High Precision CNC External Cylindrical Grinding Grinder Machine for Outer Lapping with Good Price
| US$23,700.00-34,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MK1312/300
Type
External Grinding Machine
Processing Object
Cylinder
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
ISO 9001
Condition
New
Max. Work Diameter
200mm
Grinding Wheel Line Speed
35m/Min
Max. Workpiece Length
300mm
Center Height
105mm
Distance Between Centers
300mm
Grinding Wheel Motor Power
3kw
Max. Loading
10kg
Workbench Servo Motor Power
1.8kw
Wheel Head Servo Motor Power
1.2kw
Transport Package
Ship/Train
Specification
2500kg
Trademark
SNALPO
Origin
China
HS Code
8460291200
Production Capacity
1000pieces/Year
Product Description
Product DescriptionGrinding method
Product features
1. This grinder is a multifunctional equipment used for large-scale processing of outer circles, end faces, and arcs of shaft sleeve parts. Adopting a dedicated CNC system, the feed of the grinding wheel holder and the movement of the worktable are controlled by two axes respectively. Able to complete automatic cyclic grinding of multiple outer surfaces and end faces in one installation of the workpiece.
2. It has various functions such as automatic feeding of grinding wheels, coarse, fine, and spark free grinding, automatic shifting of workbenches, automatic switching of workpiece speeds, automatic dressing and compensation of grinding wheels through pre dressing, optional automatic measurement of workpieces (measuring instruments), and safety interlocking of cyclic actions.
3. The machine tool is equipped with a dedicated user interface, which includes coordinate setting screen, grinding wheel shape parameter setting screen, trimming parameter setting screen, measuring instrument tool compensation screen, grinding parameter setting screen, etc. These dedicated screens greatly facilitate user operation.
Product Parameters
| Items | MK1312/300 | unit | |
| Grinding diameter | Φ8-Φ125 | mm | |
| Max. grinding length | 300 | mm | |
| Center height | 105 | mm | |
| Distance between centers | 300 | mm | |
| Grinding wheel line speed | 35 | m/min | |
| Grinding wheel size | Φ350*40*Φ127 | mm | |
| Grinding wheel motor power | 3 | kw | |
| Max. loading | 10 | kg | |
| Headstock spindle taper | M3# | / | |
| Z axis (workbench) | Servo motor power | 1.8 | mm |
| Servo motor torque | 10 | Nm | |
| X axis (wheel head) | Servo motor power | 1.2 | mm |
| Servo motor torque | 8 | Nm | |
Detailed Photos
Work Piece
