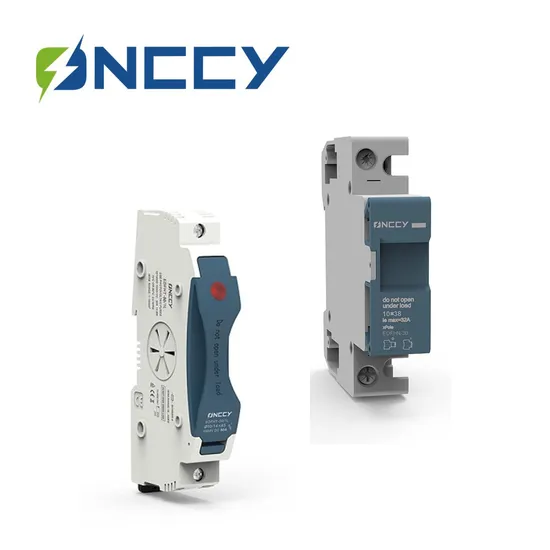

Solar PV DIN Rail DC1000V DC1500V 10X38mm 1p 2p 32A 10ka Fuse Holder

Product Description

Product Description
DC Fuse Holder For Solar Manufacturer The features of the PV Modular fuse holders 10×38 is 1000V DC & 1500V DC rated voltages.They have been developed to offer a compact, safety and economic protection solution in photovoltaic installations where due to the increase of the power and technologic evolution, no-load voltages above 1000V DC can be achieved. Modular fuse holders for 10×38 are according IEC/EN 60269 standard. Compact design, with reduced distances.

DC Fuse Holder 1000V10x38mm 1P 2P 32A 10kA Product Benefits
Din35 Rail Installation, Easy to Install Adjustable terminal block, Wiring firm Fire-retardant shell, high temperature resistance Flexible installation, Easy to replace 1000V 30A 1P 10*38mm fuse link Finger safe touch EDFH series fuse holder is made of refractory material, and meets the standard of iec60947-3. The maximum rated voltage is 1500V and the maximum current is 30A. As a short circuit and over-current protector, it is widely used in the high and low voltage distribution system, control system, and electrical equipments, like distribution box and inverter.
Din35 Rail Installation, Easy to Install Adjustable terminal block, Wiring firm Fire-retardant shell, high temperature resistance Flexible installation, Easy to replace Product Parameters
Technical Data

1P, 1P+N, 2P	230 VAC
3P, 3P+N	800 V AC
Rated operational current Ie	32 A
Conditional short-circuit current	10 kAr.m.s
Utilization category	AC 20 B
Rated impulse withstand voltage Uimp	4 kV
Fuse-links	10, 16, 20, 25 and 32 A
Operating class	gG(gL)/aM
Max. Power loss per current path	3.2 W

Mechanical
Frame size	45 mm
Device height	80 mm
Device width	acc. to dimensioned drawing
Weight	EAFH
1P	74G
1P+N	84G
2P	156G
3P	234G
3P+N	244G
Mounting	quick fastening on DIN rail IEC/EN 60715
Degree of protection (built-in)	IP20 (IP40)
Upper and lower terminals	lift terminals
Terminal capacity	1.5-10 mm2
Tightening torque of terminal screws	max. 1.2 N.m
Dimensions of fuse-link	10.3 x 38 mm

Detailed Photos
