Complete Stone Crusher Plant with Jaw Crawler Mobile Stone Crusher Plant

Product Description

Product Description
Mobile Crushing Screening Station is a complete set of Mobile Crushing and Screening equipment, including primary Crushing Station, secondary Crushing Station and Screening Station, belt conveyor, etc. . Each crushing station is an independent working unit, which can fulfill its different responsibilities. The belt conveyor is responsible for the material transfer and stacking between the crushing stations. It can be used for crushing and screening in mining, building materials, highway, railway and other industries at one time to produce the required particle size and output of materials. Mainly used in metallurgy, chemical industry, building materials, hydropower and other materials often need to move operations, especially for highways, railways, Water Conservancy and hydropower projects and other mobile stone operations. The user may adopt various configuration forms according to the type, scale of the processing raw materials and the requirements of the finished materials.
primary Crushing Station
When Jaw Crusher Mobile Station Works, materials are uniformly conveyed to crusher by feeder. After preliminary crushing by Jaw Crusher, a closed circuit system is formed by circular vibrating screen to realize the recycling crushing of materials. The finished product material is output by the conveyer for continuous crushing operation. The mobile jaw crusher can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of the material directly.
secondary Crushing Station
Mobile Cone Crusher Station,mainly used in the field of fine crushing. This device has a strong mobility, flexible and efficient, adaptable, flexible configuration and other advantages. Break the tradition in the design, using a new design concept, to produce higher hardness and finer granularity of sand and stone products, to meet the production needs of different users as a goal, careful configuration can be adjusted according to the actual needs of the crushing cavity, expanding the cone crusher mobile crushing station in the use of the field and use of the scope.
secondary Crushing Station
Mobile Impact Crusher Station is a series of novel rock crushing equipment developed by General Mining Machine, which greatly expands the concept fields of coarse crushing and fine crushing. Eliminate the crushing site, environment,complex infrastructure configuration to bring customers crushing operations obstacles.Truly provide customers with simple,efficient, low-cost project operation hardware facilities. Mobile impact jaw crushing station is suitable for the construction waste crushing station, the mining area crushing operation and so on.

Work Principle

The mobile crushing station integrates the process equipment of receiving, crushing and conveying, which is advanced in design, good in performance, high in production efficiency, convenient in use and maintenance, economical in operation cost, and stable and reliable in work. Compared with all kinds of fixed crusher, mobile crusher is like a small and medium-sized crusher which can be moved. Its work efficiency and operating cost are better than the same or higher level of fixed crusher. According to different driving modes, mobile crushing station is divided into tracked mobile crushing station and tire mobile crushing station.
Features
1.Investment cost less One-time complete crushing and screening operations, reduce equipment, less cost investment. 2.High value Production line planner for your tailor-made configuration portfolio, with a small investment profits. 3.Applicability According to the variety of raw materials, scale and requirements of finished products, a variety of combinations to meet different needs. 4.Independent Complete sets of strong crushing stations at all levels are independent units, to complete their different responsibilities, reliable operation.
Applicate materials:
Limestone, granite, marble, basalt, quartzite, river pebble, iron ore, copper ore, bluestone, sandstone, shale, construction waste, coal gangue, coal, ore tailings, artificial sand debris, etc.

Product Parameters
Mobile Jaw Crusher Station(primary crusher station)

Model	YDS50	YDS70	YDS100	YDS180
Feeder model	GZT0724	GZT0932	GZT0940	GZT1148
Jaw crusher model	PE400×600	PE500×750	PE600×900	PE750×1060
Main belt machine model	B650×6M	B800×7M	B1000×8M	B1000×11M
Maximum feed size(mm)	340	425	500	630
Outlet adjustment range(mm)	40~100	50~100	95~165	80~180
Production capacity(t/h)	10~35	25~60	30~85	72~150
Motor Power(kw)	43	57	72	147
Transport size(L×W×H)(mm)	8600×2520×3770	9600×2520×3500	11097×3759×3500	13300×2900×4440
Separator(optional)	RCYD	RCYD	RCYD	RCYD
Mobile frame	Biaxial	Biaxial	Biaxial	Triaxial

Mobile Cone Crusher Station(secondary crusher station)

Model	YHPY-200	YHPY-300	YHPY-400	YHPY-500
New type of HPY cone crusher	HPY-200	HPY-300	HPY-400	HPY-500
Cone crusher power(kw)	160	225	315	400
Maximum feed size(mm)	185	230	300	330
Minimum discharge port(mm)	5-10	6-13	6-13	8-16
Production capacity(t/h)	50-250	100-400	120-500	150-700
Vibrating screen type	3YK1854	3YK2160	3YK2260	3YK2460
Vibrating screen power(kw)	22	30	37	37
Sieve belt conveyor	B800L6	B1000L6	B1000L8	B12008
Match power(kw)	5.5	7.5	7.5	11
Hydraulic system	YZ20	YZ30	YZ30	YZ30
Frame configuration	Biaxial	Triaxial	Triaxial	Triaxial

Mobile Impact Crusher Station(secondary cruhser station)

Model	YDS50	YDS70	YDS100	YDS180
Vibrating screen type	4YA1235	4YA1545	4YA1548	3YA1848
Crusher model	PF1007	PF1010	PF1214	PF1315
Outlet belt conveyor model	B650×7M	B800×7M	B1000×10M	B1000×11M
Return belt conveyor model 1	B650×9M	B800×10M	B1000×10M	B1000×11M
Return belt conveyor model 2	B650×5M	B800×6M	B1000×6M	B1000×7M
Transport size(L×W×H)(mm)	10800×2480×4170	12200×2743×4200	12500×2900×4200	13000×3100×4300
Tire configuration	Biaxial	Biaxial	Biaxial	Triaxial
Model	YDS50	YDS70	YDS100	YDS180
Vibrating screen type	4YA1235	4YA1545	4YA1548	3YA1848
Crusher model	PF1007	PF1010	PF1214	PF1315
Outlet belt conveyor model	B650×7M	B800×7M	B1000×10M	B1000×11M

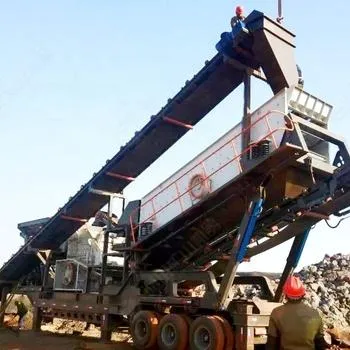

Customer site
Company Profile
Cerificate
Packaging &services

The package of all equipment is accord with the standard protective measures.The packing is suitable for short and long distance transportation. The moisture proof, quake proof, protected against dampness, and rustproof protection measures were taken to ensure the machine shipping to customers safely.
Standard parts are packed in the wooden boxes, and the big parts are packed with plastic membrane.The whole machine is loaded in the container
Our services
Pre-sale support of China Manufacturer mobile Jaw Crusher
We can enable them to get rich and generous returns on their investments:
1 select equipment model;
2 design and manufacture products according to clients' special requirement;
3 train technical personnel for clients.

Services during the sale China Manufacturer mobile Jaw Crusher
We respect clients and always devote ourselves to improving the total value of clients:
1 pre-check and accept products ahead of delivery;
2 help clients to draft solving plans.

After-sales service support China Manufacturer mobile Jaw Crusher stone
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.

Technological support China Manufacturer mobile Jaw Crusher
Dman insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
Sbm is provided with independent research and development system, our high reputed engineers and technicians can provide users with overall technical support, including material characteristic analysis, crushing test and process optimization of flow simulation.
Our professional engineers will design the most reasonable scheme for the real production line.
