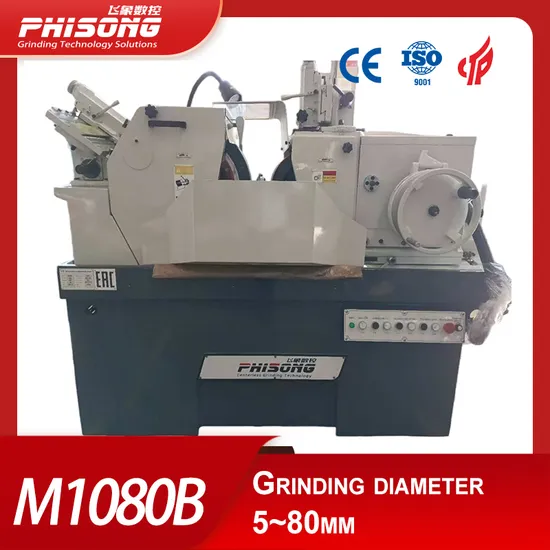

China Factory Cylindrical Grinding Machine Centerless Grinder M1080b for Rods, Bars

Product Description

Product Description
1.Machine body Casting, natural aging and heat treatment for reasonable deformation and better durability.

2.GW and RW(Regulating wheel)
GW and RW are cantilever type ,easier for wheel changing.
GW fixed on machine bed, with better reliability and stability

3.Feeding
handwheel for feeding
Flat V hrdraulic guide foe feeding..
4.Dressing for GW and RW Hydraulic cylinder for reciprocating motion, hand wheel for dresser feeding.

5.Electric
Converter for RW motor, step-less speed adjusting.
Hydraulic transmission & stepless speed regulation are adopted on regulating wheel & grinding wheel dresser.
6.Cooling and lubrication Water tank for cooling. Magnetic separator and tap filter optional.
Hydraulic lubrication oil tank.

7.Technical data:

In-feed Grinding	Dia.	5-50mm
	Length	140mm
Through grinding	Dia.	5-50mm
GW SPEC. (O.D.*width*I.D.)		400*150*203mm
RW SPEC.(O.D.*width*I.D.)		PSA300*150*127mm
GW Speed		1668r/min
RW Speed (stepless)		20-200r/min
Swiveling Angle of RW	Vertical	-2°~ +5°
	Horizontal	0°~ +3°
RW carriage min. feed		0.001mm
GW dresser min feed		0.01mm
Height from center line of GW & RW to work rest		220mm
GW Motor		11kw
RW Motor		1.5kw
Power Supply		3N 50HZ 380V (optional)
Dimension(L*W*H)		1920*1681*1479mm
Machine Weight		About 2800KG

8.Main Accessories

Name	QTY	Unit	Brand
Grinding wheel motor	1	pc	Wannan
Regulating wheel motor	1	pc	Wannan
Low-voltage apparatus	1	set	Chint
Converter for RW	1	set	Huichuan

Grinding Examples&Operations
Automatic Solution
Company Profile
Jiangsu Phisong CNC machine Co., Ltd., known for it′s professional centerless grinding technology at home and abroad, Phisong CNC inherits and absorbs the essence of the advantages on cylindrical grinding machine, centerless grinding machine design, production and manufacturing industry. Our products are selected by a number of famous Top-500 enterprises and listed companies at home and abroad and exported to countries and regions in Europe & America, Russia, southeastern Asia etc.We presently built offices with modernized environment, process with advanced producing technology, Adopt ISO9001 international quality management system. For different processing requirements, we customized professional processing technology for customers in improving their processing level and production efficiency with concept of professional skill, integrity and enthusiasm.Phisong gathered a large number of professional elites, based on the full range of product quality management, and the employment of senior experts as a long term production technology consultant, with a professional attitude, devoted to product R&D and production. We have a wide range of applications: From micro nozzle needle to high precision pump piston to heavy rail shaft, we continue to develop centerless grinding technology, won the majority of customers′ praise.
