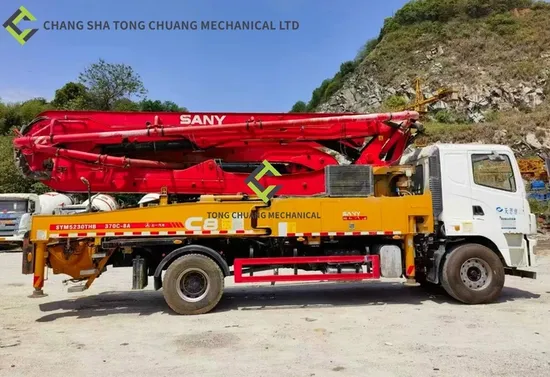

High-Performance Sym5230thb 370c-8A C8 Series Concrete Pump Truck
| US$50,000.00-100,000.00 | 1 units (MOQ) |
Basic Info.
Model NO.
SYM5230THB 370C-8A
Shotcrete Type
Wet
Structure
Cylinder Type
Productivity
180m²/h
Feeding Height
36.5m
Certification
ISO9001: 2000, CE
Condition
Used
Color
Red
Engine Model
J08e-Wy
Vertical Reach
36.5 M
Vehicle Mass
23000kg
Overall Dimensions of The Whole Vehicle
10050*2530*3850mm
Maximum Outlet Pressure of Concrete (Low
8MPa
Hydraulic System Type
Open Type
Engine Power
194kw
Origin
Changsha
HS Code
8705909000
Production Capacity
100units/Year
Product Description
Product Parameters| Technical parameters of SYM5230THB 370C-8A C8 series 37 meter concrete pump truck | ||||||||
| Vehicle parameters | Total length | 10050mm | ||||||
| OveOverall width | 2530mm | |||||||
| Total height | 3850mm | |||||||
| Total weight | 23000kg | |||||||
| Arm support leg parameters | Vertical height of boom | 36.5m | ||||||
| Horizontal length of boom | 31.8m | |||||||
| Vertical depth of boom | 24.8m | |||||||
| Unfold height | 7.5m | |||||||
| Turntable rotation angle | ±360° | |||||||
| Front leg deployment width | 6110mm | |||||||
| Rear leg deployment width | 8500mm | |||||||
| Pumping system parameters | Concrete displacement - low pressure | 100m ³/ h | ||||||
| Concrete displacement - high pressure | 60m ³/ h | |||||||
| Theoretical pumping pressure - low pressure | 8Mpa | |||||||
| Theoretical pumping pressure - high pressure | 13Mpa | |||||||
| Inner diameter of conveying cylinder | 230mm | |||||||
| Transport cylinder stroke | 1600mm | |||||||
| Hydraulic system | open | |||||||
| System oil pressure | 32Mpa | |||||||
| Fuel tank capacity | 320L | |||||||
| Water tank capacity | 360L | |||||||
| Conveying pipe diameter | 125mm | |||||||
| End hose length | 3m | |||||||
| End hose diameter | 125mm | |||||||
| Chassis parameters | Chassis brand | |||||||
| Chassis Model | SYM5230THB1E | |||||||
| Engine model | J08E-WY | |||||||
| Engine net power | 194/2200kW/rpm | |||||||
| Emission standard | National V | |||||||
| Fuel tank capacity | 300L | |||||||
| Displacement | 7.684L | |||||||
| Maximum speed | 85km/h | |||||||
| Braking distance | ≤8.5/30m/km/h | |||||||
Detailed Photos
Company Profile
FAQ
1. who are we?We are based in Hunan, China, start from 2022,sell to Africa(30.00%),Southeast Asia(30.00%),Domestic Market(20.00%),Mid East(20.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?concrete pump truck,concrete mixer truck,truck crane,dump truck4. why should you buy from us not from other suppliers?In the second-hand construction machinery industry for more than ten years. Specialize in providing all kinds of construction machinery and equipment in original condition, including new and original second hand equipment.5. what services can we provide?Accepted Delivery Terms: FOB,CIF,EXW,DAFAccepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,Cash;Language Spoken:English,Chinese,Spanish,Arabic,French,Russian
