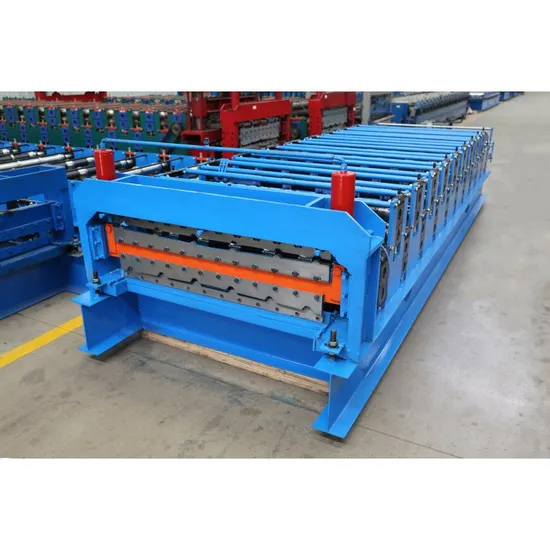

Metal Roof Panel Roll Forming Machine Roof and Wall Sheet Roller Machine Price Double Layer
Basic Info.
Model NO.
2layer
Tile Type
Colored Steel
Certification
CE, ISO
Condition
New
Customized
Customized
Usage
Roof, Floor
Transmission Method
Hydraulic Pressure
Voltage
380V 50Hz or Customized
Worker
1 Only
Forming Speed
10-16m/Min
Power
4kw
Weight
5800kg
Material of Shaft
45# Steel Surface Hard Chrome Plating
Material of Roller
45# Forged Steel
Material of Cutter
Cr12 Quenched
Control System
PLC
Material Thickness
0.3-0.8mm
Main Frame
300# H Steel
Cutting Type
Hydraulic Cutting
Transport Package
Standard Export Package
Specification
customize
Trademark
ZHONGKE
Origin
Botou
HS Code
8455221000
Production Capacity
20sets/Month
Product Description
Product Description
Machine Process
product parameters
| ITEM | SPECIFICATION |
| Material Thickness | 0.3-0.8mm |
| Processing Material | color steel/alu-zinc |
| Forming Speed | 10-16m/min |
| Power | 4kw |
| Pump Motor | 4kw |
| Material of Shaft | 45# steel surface hard chrome plating |
| Material of Roller | 45# forged steel |
| Roller station | 14 rows |
| Weight | 5800kg |
| Material of lade cutting | Cr12 quenched |
| Material Width | 1000mm |
| Dimension | 6500*1650*1700mm |
| Effective Width | costomize |
| Shaft Diameter | 70mm |
| Middle panel of machine | 16mm |
| Transmission mode | motor drive |
Detailed Photos
Product Application
Packaging & Shipping
Our Advantages
Why choose Zhongke ?
Zhongke is a manufacturer of tile press machines, we have many years of R & D, design and production of rich industry experience. Nowadays, our company has formed a complete modern management model with great product development and innovation ability. Our products are favored by global customers because of the lightweight structure, novel design and high degree of innovation.
FACTORY SCENE
OUR ADVANTAGES
OUR PRODUCT
Qualification certificate
