Best Price Efficient High Carbon Steel Wire Straight Line Wire Drawing Machine

Product Description

Product Description

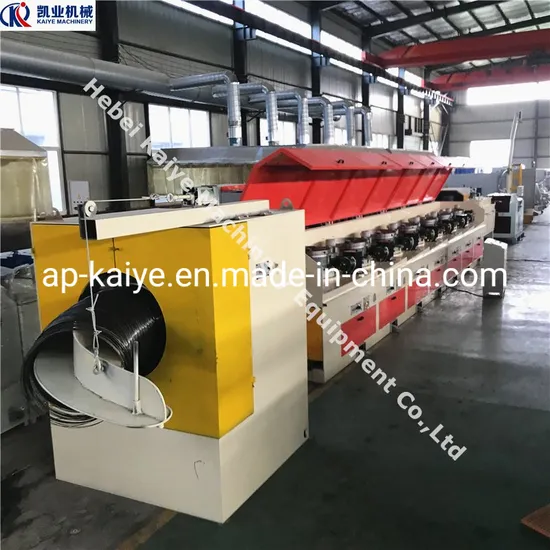

High carbon steel wire drawing machine
(KY-LZ-560/7)

Production process :
High carbon steel wire coil---Mechanical derusting---Belt polishing machine---Boron coating drying treatment---straight line wire drawing machine---Trunk take-up machine
The main features of high carbon steel wire drawing machine are that the drum adopts narrow slot water cooling and the drawing die adopts direct water cooling; Good cooling effect; Gear box transmission is adopted, with high transmission efficiency and low noise; Fully enclosed protection system is adopted, with good safety; Air tension tuning is adopted to ensure stable drawing.
Different from the ordinary wire drawing machine, the direct feed wire drawing machine adopts AC frequency conversion control technology or DC programmable control system and screen display, with high degree of automation, convenient operation and high quality of drawn products. It is suitable for drawing various metal wires with diameter less than 12 mm.

The main functions of the straight wire drawing machine include accurate meter counting with an error of 0.1%; Fixed length automatic deceleration and stop; Disconnection detection and automatic shutdown; Positive and negative inching and left-right linkage of any drum; Display of various fault information and processing information; Various motion information monitoring.
This machine is equipped with jumper device, which can cut off the drum and draw at will to adapt to different processes. It is suitable for drawing a lot of materials, such as prestressed steel wire, tire steel wire, rubber hose steel wire, spring steel wire, steel cord and other metal wires.

Machine Specification

Model	Unit	LZ400	LZ560	LZ600	LZ800
Capstan diameter	mm	400	560	600	800
Drawing dies	Times	9	9	9	9
Inlet wire diameter	mm	Φ2.5-4.5	Φ5.5-6.5	Φ6.5-8.0	Φ8.0-10
Outlet wire diameter	mm	Φ0.8-1.4	Φ1.6-2.0	Φ2.0-3.0	Φ2.8-3.5
Drawing speed	m/s	10-16	8-12	6-12	6-10
Total reduction rate	%	90.32	90.53	90.53	90.53
Motor power	Kw	11-15	30-37	30-37	37-75

Mechanical Advantage

Wire take up system. The take-up system is divided into trunk take-up machine and spool take-up machine, Customers can choose according to their needs. Wire take up machine uses adjustable speed motor, in order to be able to automatically cycloid, so that the operation becomes more convenient.

Capstan. Capstan uses special materials to spray tungsten carbide on the surface and increase the height and thickness. The drum base adopts narrow slot design to effectively prevent rust and impurities from entering the drum.

Rotary die box. The whole set of machinery uses a rotating die box, which can make it easier for the wire drawing powder to adhere to the surface of the wire rod. Improve the quality of wire rod finished products.

Protection cover. The machine adopts a fully enclosed protection system, which has good safety performance and can reduce the generation of dust, thus reducing the damage to the electrical and prolonging the mechanical life.

Gear box. The mechanical transmission system adopts the direct connection between the gearbox and the motor, which can greatly reduce the noise, improve the reliability of operation and increase the transmission power. Save electricity.

Inverter. The machine is equipped with frequency converter, and the energy-saving effect is very obvious. It is very convenient to adjust the speed. The frequency converter also has many protection functions, such as overcurrent, overvoltage, overload protection and so on.

Boron coating drying system. Borax film can be attached to the surface of high carbon steel wire after boron coating and drying treatment, which is conducive to the adhesion of wire drawing powder and improve the drawing effect of steel wire.

Sand belt polishing machine. The steel wire is polished with high-speed abrasive belt to make the derusting effect better. It is conducive to boron coating and drawing process. It is suitable for high quality drawing process.

Control cabinet. High degree of mechanical automation, all kinds of fault information and processing information are displayed on the screen.

Wire Pay off system. Wire pay off system usually is pneumatic lifting pulley, convenient wire threading.Customers can choose hydraulic wire pay off systems or ordinary wire pay off systems.

Company Profile

Factory History
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields.
Factory R&D Team
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years. Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.
Factory workshop
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.Our main products: wire mesh welding machine, EPS 3D panel machine, reinforcement mesh welding machine, Gabion mesh machine, hexagonal wire mesh machine,wire drawing machine, expanded metal machine,chain link fence machine, CNC stirrup rebar bending machine .

Customer and Market
Friends from all over the world.
The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania, Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment.

FAQ

Q: Are you a manufacturer?
A: Yes, we have been in providing the professional products in wire mesh field more than 20 years.
Q:Where is your factory located? A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city. Q: How about the delivery time?
A: Usually within 15- 20 days, customized order may need longer time.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went more than 60 countries before. They are very experienced.
Q: How do you guarantee your machine's quality when producing?
A: Our services are always by your side, We have our technicians to inspect the parts of the machine every day, the machine will be adjusted well in our factory before shipment ,all the parts are in good condition.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.


So if you want to know more about our barbed wire machine or other machines, please contact me now
