Large Pipe Shredder - J Series 1200 With the Best Cutting Rotor Assignment

Product Description

Large Pipe Shredder - J Series 1200 With the Best Cutting Rotor Assignment
Product Description
Typical Applications Include:
Pipe - Large Diameter Thick Walled Pipes, Corrugated Pipes etc. Bins & Containers - Wheelie Bins, Crates etc. Rolled Materials - Carpets, Artificial Grass, Industrial Reels etc.
Description:

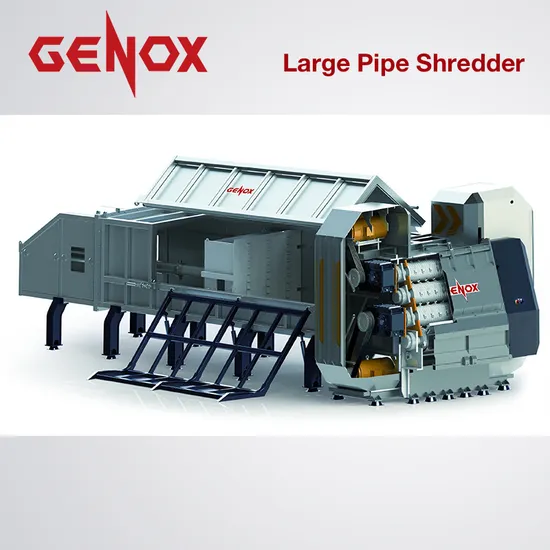

J1200 Pipe Shredding system is designed to process plastic pipe or plastic profile with a 6-meter-long, 1200 mm diameter. Four-shaft shredding design is a leading technology in the world and an initiative origination in China. With the best cutting rotor assignment, the fours shafts form the best cutting angle. Separate motor starting design highly reduces import for the electricity network.
The cutting shaft can be controlled separately, so as to bring down the running cost of the machine. Every cutting shaft owns specific features according to its location, to achieve the best cutting effect. The feeding system is equipped with a multilevel hydraulic cylinder, powered and controlled by an efficient, stable, and automatic control system.
Feeding speed can be controlled for shredding different materials so that the target of energy saving can be achieved. The equipment is with a compact and reliable design. Safe checking doors and covers are designed with hydraulic opening devices for easy maintenance.
Features:
1. Multi-rotor design - the number of rotors can be specified according to the material size.
2. High shear cutting between the rotor and counter knives, suitable for thin wall pipe shredding.
3. Shock Absorbing Gearboxes reduces Stress on Drive Components.
4. Long Life Counter Knives can be adjusted to maintain cutter clearance.
5. Segmented loading chamber floor with Brass Guides.
6. High-strength hydraulic cylinder with reinforced support frame, adjustable ram speed.
7. Large feed with hydraulic tipper for optimized material loading.
8. Feed chamber auto-lock system to ensure safety.
9. Stand Alone Electrical Control Panel with Siemens PLC Control System.
10. Tested, Approved, and Certified to the applicable CE safety standards.
Specifications

Model	J1200
Dimension (L/W/H) (mm)	12400 × 4270 × 3130
Ram Travel (mm)	6500
Rotation diameter (mm)	400
Rotor Length (mm)	1300
Rotation speed (rpm)	80
Number of Rotor Knives (pcs)	150
Number of Counter Knives (pcs)	3
Hydraulic Power (kw)	18
Motor Power (kw)	30kw(3)37kw(1)

Detailed Photos
Company Profile
FAQ
1.Question:Will we provide pre-sale services ?
Answer:Genox consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
2.Question:Is our after-sales service excellent ?
Answer:Genox's skilled technicians are available to assist with onsite installation,commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Genox technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Genox holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.

3.Question:Will we provide technical support ?
Answer:Genox provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
