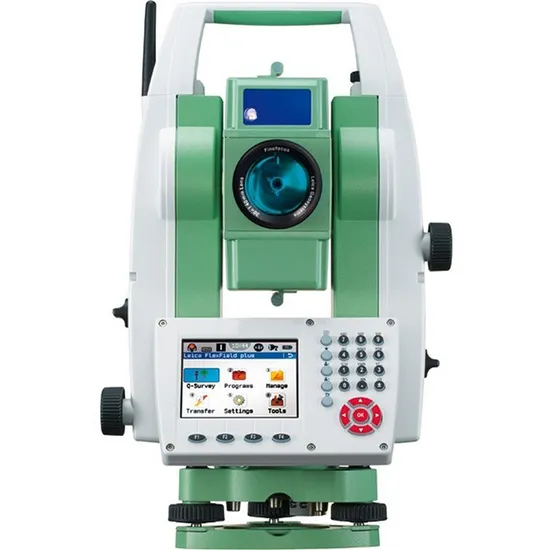

Leika Ts09 Total Station Survey Instrument Total Station High Accuracy Total Station
Basic Info.
Model NO.
TS09
Angle Measuring Method
Absolute Angle Encoder System
Min. Focusing Distance
1.0m
Without Prism
400m/600m/800m/1000m
with Prism
5000m
Erect
Magnification
30X
Weight
5.2kgs
Accuracy
2"
Vertical Lines
Optical
Horizontal Line
Telescope
Transport Package
Individual Package
Specification
160*150*335mm
Trademark
Leika
Origin
Jiangxi
HS Code
9015800090
Production Capacity
10, 000PCS/Year
Packaging & Delivery
Package Size
55.00cm * 45.00cm * 35.00cm
Package Gross Weight
20.000kg
Product Description
| Leika FlexLine TS09 specifications | |
| Measurement - Angle | |
| Method | Absolute, diametrical, continuous |
| Resolution Display | 0.1" |
| Compensation | Quadruple Axis |
| Accuracy - Compensator Setting | 0.5" / 0.5" / 1" / 1.5" / 2" |
| Distance Measurement using Reflector | |
| Range - Round prism | 3500 metres |
| Range - Reflective tape | > 500 metres > 1000 metres |
| Range - Prism-Long | > 10000 metres |
| Measurement Time (typical) | 1second |
| Distance Measurement no using Reflector | |
| Range - PinPoint R500 / R1000 | > 500metres / > 1000metres |
| Accuracy | 2mm + 2ppm |
| Laser dot size | At 30metres, approximatley 7 x 10millimetres |
| Data Communication / Storage | |
| Built in memory | 100000 fixpoints, 60000 measurements |
| Interfaces | USB Type A & mini B Bluetooth |
| Guide Light | |
| Range Working | 5metres to 150metres |
| Accuracy Positioning | 5centimetres at 100metres |
| Telescope | |
| Magnification | 30x |
| Resolving power | 3" |
| Field of View | 1° 30" 2.7metres at 100metres |
| Focusing range | 1.7metres to infinity |
| Reticle | Illuminated display and 10 levels of brightness |
| Keyboard & Display | |
| Display and Keyboard | Full Alpha numeric with colour and touch screen, Q-VGA, graphics, 5 brightness levels and display illumination, |
| Laserplummet | |
| Type | Laser point 5 levels of brightness |
| Centering accuracy | 1.5 mm at 1.5metres |
| Battery | |
| Type | Lithium-Ion |
| Operating time | Approximatley 30hrs |
| Weight | |
| Total station | 5.1 kg |
| Environmental | |
| Operating Temperatue | -20° C to +50° C |
| Arctic Type - 35°C to 50°C | |
| Water / Dust | IP55 Rating |
