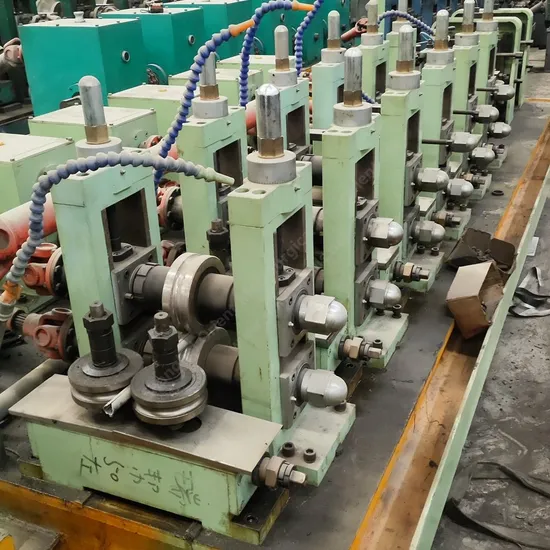

Smooth-Operating Tube Mill, Reliable and Versatile, Ideal for Your Tube Producing Tasks
| US$1,000.00-1,500.00 | 1 Ton (MOQ) |
Basic Info.
Model NO.
7-273mm
Condition
Used
Customized
Non-Customized
Theory
Pulse
Application
Industry, Decoration
Type
Pipe Welding Machine
Rust-Removal
Provided
Maintenance
Provided
Repainting
Provided
Full Set
Yes
Auxiliary Equipment
Included
Transport Package
Provided
Specification
Tube Mill
Trademark
None
Origin
China
Production Capacity
3000 Sets / Year
Product Description
High Frequency Welding Tube Mill Line:Main Process
Uncoiler→ beading & pressure-guiding/straight head leveling/leveler→ shear-butt welding→ horizontal spiral loop→ forming unit→ solid high frequency power supply→ outer-burr removal device→ bead polishing device→ cooling channel→ sizing mill group→ straightening→ computer flying saw→ pneumatic turning rack
Product specification:
| Type | Welded pipe Dia (mm) | Pipe wall thickness (mm) | Welding speed (m/min) | Main motor power(KW) | Solid high frequency power supply (kW) |
| VZH-16 | φ7-18mm | 0.3-1.0mm | 30-120m/min | 22kW | 60kW |
| VZH-20 | φ9-26mm | 0.3-1.2mm | 30-120m/min | 37kW | 60kW |
| VZH-25 | φ10-30mm | 0.4-1.5mm | 30-100m/min | 45kW | 100kW |
| VZH-32 | φ12.7-38.1mm | 0.5-1.75mm | 30-100m/min | 75kW | 100kW |
| VZH-32z | φ12.7-38.1mm | 0.6-2.0mm | 20-90m/min | 45kW*2 | 100kW |
| VZH-45 | φ16-50.8mm | 0.6-1.5mm | 20-80m/min | 45kW*2(90kW) | 150kW |
| VZH-45z | φ16-50.8mm | 0.7-2.5mm | 20-75m/min | 55kW*2(132kw) | 150kW |
| VZH-50 | φ20-63.5mm | 0.7-3.0mm | 20-75m/min | 75kW*2 | 200kW |
| VZH-60 | φ25-76mm | 0.8-3.25mm | 20-70m/min | 90kW*2 | 250kW |
| VZH-76 | φ30-101mm | 1.0-3.75mm | 20-70m/min | 110kW"2 | 300kW |
| VZH-89 | φ35-114mm | 1.2-4.25mm | 20-70m/min | 132kW*2 | 300kW |
| VZH-114 | φ40- 127mm | 1.5 - 5.0 mm | 15-60m/min | 160kW*2 | 400kW |
| VZH-125 | φ50-130mm | 1.8-5.5mm | 10-50m/min | 185kW*2 | 400kW |
| VZH-165 | φ60-165mm | 2.0-6.0mm | 10-50m/min | 200kW*2 | 400kW |
| VZH-165z | φ76-168mm | 2.5-8.0mm | 10-50m/min | 200kW+110kW*2 | 500kW |
| VZH-219Q | φ76-219mm | 2.0-6.0mm | 10-40m/min | 90kW*2+110kW*2 | 500kW |
| VZH-219 | φ89-219mm | 3.0-8.0mm | 10-40m/min | 110kW*2+132kW*2 | 600kW |
| VZH-219z | φ89-219mm | 4.0-10.0mm | 10-40m/min | 132kW*2+160kw*2 | 700kw |
| VZH-273 | φ100-273mm | 4.0-10.0mm | 10-40m/min | 160kW*2+185kW*2 | 700kW |
| VZH-273z | φ114-273mm | 4.5-12.0mm | 10-30m/min | 185kW*2+200kW*2 | 800kW |
