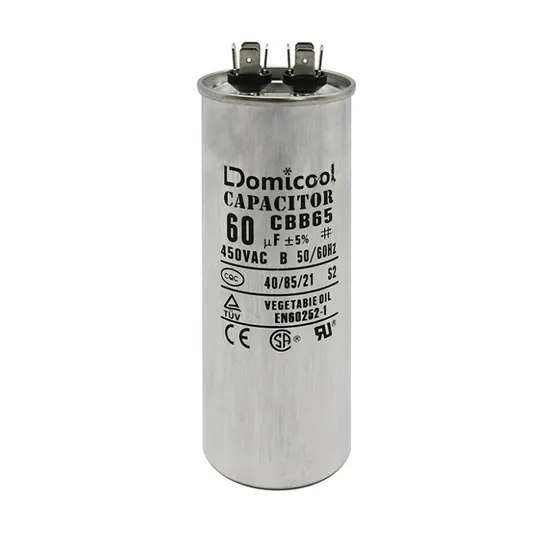

AC Motor Running Cbb65 Capacitor Price Manufacturing Quality Capacitor

Product Description

1.Specifications
TP CBB65-1 metalized polypropylence AC capacitor
Features:
1.Round-shape metal case,two groups of lug terminals.
2.With inner anti-explosion device,safe andreliable.
3.Low dissipation factor,high insulation resistance,good self-healing,stable performance,good ability of resisting impact current and overload.
Technical Data:

Ambient temperature	-40-+85ºC
Rated Voltage	250-500VAC
Capacitance Range	2-100uf
Test Voltage	T-T:1.75Un/2s T-C:2200VAC/2s
Capacitance Tolerance	±5%,±10%
Dissipation Factor	tg<=0.002(100Hz,20ºC)
Operating Frequency	50/60Hz
Executing Standard	IEC60652,UL810,EN60252,VDE0560-8,GB/T3667,1-2005

Outline Dimensions:

Capacitance Range	250-300VAC		370-400VAC		440-500VAC
	D(mm)	H(mm)	D(mm)	H(mm)	D(mm)	H(mm)
1-100uf	30-50	55-125	30-60	55-125	30-60	55-135

TP CBB65-2 metalized polypropylence AC capacitor
Features:
1.Round-shape metal case,three groups of lug terminals,and combining the capacitor of air-conditioner compressor with the capacitor of fan.(C for public pole,HERM for compressor pole,FAN for the fan pole)
2.With inner anti-explosion device,safe and reliable.
3.Low dissipation factor,high insulation resistance,good self-healing,stable performance,good ability of resisting impact current and overload.
4.Suitable for air conditioner,refrigerator,washing machine,lighting,etc and beneficial to the starting and running of AC motor.
Technical Data:

Ambient temperature	-40-+85ºC
Rated Voltage	370-450VAC
Capacitance Range	1+1 -80+15uf
Test Voltage	T-T:1.75Un/2s T-C:2200VAC/2s
Capacitance Tolerance	±5%,±10%
Dissipation Factor	tg<=0.002(100Hz,20ºC)
Operating Frequency	50/60Hz
Executing Standard	IEC60652,UL810,EN60252,VDE0560-8,GB/T3667,1-2005

Outline Dimensions:

Capacitance Range	370-400VAC		440-450VAC
	D(mm)	H(mm)	D(mm)	H(mm)
1+1 -80+15uf	30-60	50-140	30-60	50-150

TP CBB65-Oval metalized polypropylence AC capacitor
Features:
1.Oval-shape metal case,two or three groups of lug terminals.
2.With inner anti-explosion device,safe and reliable.
3.Low dissipation factor,high insulation resistance,good self-healing,stable performance,good ability of resisting impact current and overload.
4.Suitable for air conditioner,refrigerator,washing machine,lighting,etc and beneficial to the starting and running of AC motor.
Technical Data:

Ambient temperature	-40-+85ºC
Rated Voltage	250-500VAC
Capacitance Range	5-100uf
Test Voltage	T-T:1.75Un/2s T-C:2200VAC/2s
Capacitance Tolerance	±5%,±10%
Dissipation Factor	tg<=0.002(100Hz,20ºC)
Operating Frequency	50/60Hz
Executing Standard	IEC60652,UL810,EN60252,VDE0560-8,GB/T3667,1-2005

Outline Dimensions:

Capacitance Range	250-300VAC			370-400VAC			440-500VAC
	L(mm)	B(mm)	H(mm)	L(mm)	B(mm)	H(mm)	L(mm)	B(mm)	H(mm)
1-100uf	31.5-45	51.5-70.5	50-125	31.5-47.6	51.5-90	50-125	31.5-47.6	51.5-90	50-125
