High Performance Automatic High Strength Bolt Detector Controlled by Microcomputer

Product Description

Jinan Liling Testing Machine Co., Ltd. is a high-tech enterprise that integrates research and development, production, and sales. Experienced in research and development, supporting non-standard customization, OEM and ODM, manufacturer direct sales, fast delivery speed, and timely and guaranteed after-sales service

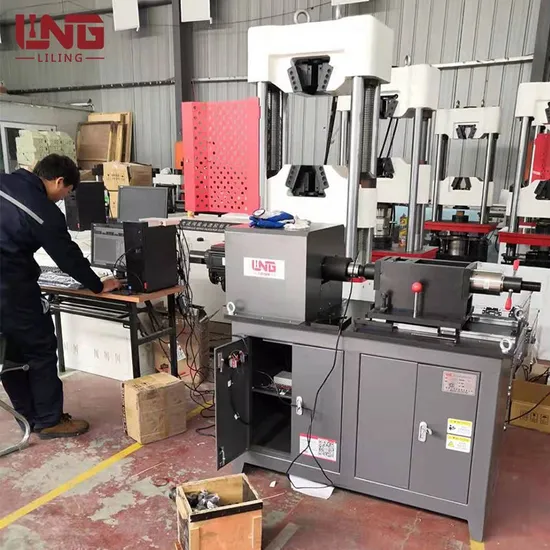

Product DescriptionLJZ-500w type detector is mainly used for the detection of high-strength bolted connection pairs, which can detect the axial force and torque (or torque coefficient) of high-strength bolted connection pairs with large hexagon head (M16 -- M30).The equipment is automatically loaded by cycloid needle gear reducer, linear guide rail, chinese-language operation interface, microcomputer control high-strength bolt automatic tightening, loosening, reset, operation process intelligent prompt, easy and fast operation.When the axial force after reaching the standard setting, the detector will automatically record test data, through the computer automatically calculates the average axial force and average torque, sample average torque coefficient, standard deviation and coefficient of variation, and it can display the curve of coefficient of output torque, axial force, torque curve, etc., at the same time with parameter setting, calibration, the calibration data report printing and query function.
All the company's products out of the warehouse quality inspectors strictly through a variety of debugging processes, the machine runs well, the data results are accurate before delivery.

Project/Category	Refers to the standard
Axial force detection range	20-500kN
Torque detection range	20-2000Nm
Bolt specification	M16~M30
The length of the bolt	60~280mm
Repetitive	0.5%
Relative resolution	0.25%
The control mode	The computer
Display mode	Computer LIQUID crystal display
The data processing	LLG-TESTINGspecial measurement and control system

1.Interface of test host
2.Experiment report output interface
Features1. The height of the main engine adopts the horizontal structure of man-machine design principle, which makes the test process safe and easy to operate.
2. The bolt torsion-pull installation test module is installed on the linear guide rail, making it convenient to install and adjust the specimen.
3. Foolproof software design, test process complete with one click.
Equipped with a tool box at the lower end of the main machine body, it is more convenient for test operators to work. 4. The uniformity, repeatability and authenticity of the experimental results are greatly improved by the uniform loading of the reducer at the input end.
Company Profile

Jinan Liling Testing Machine Co., Ltd. is a manufacturer of high-end testing equipment manufactured in China, and a technology-oriented enterprise with independent domestic high-quality technology research and development teams.
The company is located in a provincial-level industrial park, with senior engineers who have been engaged in testing machine design for thirty years and modern electromechanical integration engineering technicians with exquisite technology. We provide users with conventional testing machines that meet national, European, American, and industry standards, as well as design and develop various complex specialized testing equipment and mechanical equipment.
The company's management team collaborates with multiple enterprises, research institutes, and higher education institutions through innovative, open, and win-win thinking, combined with the industry university research model, to provide professional material mechanics solutions.
operation principle:
Survive by quality, develop by science and technology, take customer as the center, create brand by service.
The company has successively obtained ISO9001 certificate, CE certificate, electro-hydraulic servo pressure testing machine, electro-hydraulic servo universal testing machine, electronic universal testing machine and other testing machine category type evaluation certificate, the national steel structure industry Association member unit.
Our company park is close to the west Viaduct of the Second Ring Road, the transportation is very convenient, the park covers an area of nearly 30,000 square meters, including the machining center, production and assembly workshop covers an area of 3,500 square meters, research and development department, technical service department and Marketing Department are located in the park Huayi Science and technology innovation office building, the company's management team with innovative, open and win-win thinking, Combining the model of production, university and research with a number of enterprises, research institutes and universities to provide professional material mechanics solutions.
Adhering to the business philosophy of "survival by quality, development by science and technology, customer-centric, and brand by service", our company has won the trust and support of domestic and foreign customers by creating a high standard production quality management system, advanced new product development center, perfect after-sales service system and efficient after-sales service process.
Packaging & Shipping
FAQ1. Are you trading company or manufacturer?
We are a factory at Shandong,China.
2. Do you have after-sales service? How can I ask? What about warranty?Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
3. What is the delivery deadline?Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. Can the device be customized? Can I customize my own design on the device?We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can also place your trademark on the machine.
