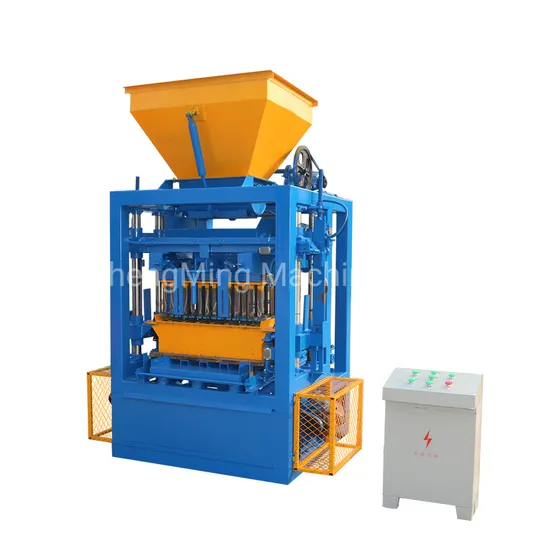

Qtj4-26c Fly Ash Brick Making Machinery in Pakistan Easy Control Manufacturing Machines List
Basic Info.
Model NO.
QTJ4-24
Certification
CE, ISO
Customized
Customized
Automatic Grade
Semiautomatic
Type
Vibration Molding
Work Method
Vibration Forming
Raw Material
Sand, Stone, Cement, Stonedust
Block Type
Hollow Concrete Brick Machine
Product Name
Semi Automatic Concrete Making Machine
Name
Semi Automatic Cement Block Machine
Products
4PCS/Mould
Keywords
Hollow Vibration Cement Block Moulding Machine
Pallet Size
850*450mm
Brick Type
Hollow Brick Concrete Brick Hole Brick
Molding Cycle
25-30s
After Warranty Service
Video Technical Support
Warranty Service
Online Support
After-Sales Service Provided
Free Spare Parts
Advantage
Hollow Block Making Machine
Machine Type
Brick Block Making Machine
Transport Package
Shipping by Sea
Specification
2600*1900*2400mm
Trademark
SHENGMING
Origin
China
HS Code
8474802000
Production Capacity
50set/Month
Product Description
QTJ4-24 qtj4-26c fly ash brick making machinery in pakistan easy control manufacturing machines listTechnical parameters
| Total rated power | 12.35KW | Block yard area | 50M2 |
| Daily capacity | 2000-3000 pieces | Power voltage | 380V/220V AC |
| Pallet quantity | 600-700 pieces | Labor quantity | 2-3 people |
| Water consumption | 3-5T/day | Forming period | 25-30S |
block machine introduction
| Main featrues: The machine adopts four column guiding design. It is a new semi-automatic brick making machine developed by absorbing the advantages of various small and medium-sized equipment in the past. The vibration system is equipped with high-power motor and specially developed vibration box, which greatly improves the excitation force and compactness. It has one controller cabinet, which makes the button control more convenient. Its automatic material dropping system, automatic push-pull die design and automatic brick discharging system greatly improve the production efficiency. By changing the mold, the equipment can produce all kinds of hollow bricks, solid bricks and non colored tiles, and the practicability is greatly improved. |
Production Capacity table
| Size (LXWXH)mm | Pieces/mold | Pieces/Hour | Pieces/Day |
| Hollow block 400x200x200 | 4 | 480 | 3840 |
| Hollow block 400x150x200 | 5 | 600 | 4800 |
| Hollow block 400x100x200 | 7 | 650 | 5200 |
| Solid block 400x200x200 | 4 | 480 | 3840 |
| Paver 200x100x60 | 10 | 720 | 5760 |
Features:
1. Double door design, 4-column guide.
2. Special vibration box design, large exciting force and fast forming speed
3. Push button control of control cabinet for convenient operation
4. Automatic unloading, automatic push-pull die and automatic brick discharging greatly improve the production efficiency
QTJ4-24 qtj4-26c fly ash brick making machinery in pakistan easy control manufacturing machines list
(1) Q: what is the material for this machine ?
A: you can use concrete material, plus a little cement.
(2) Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
(3) Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years
(4) Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.
QTJ4-24 qtj4-26c fly ash brick making machinery in pakistan easy control manufacturing machines list
