Reliable Spiral Blending System for Effortless Powder Mixing

Product Description

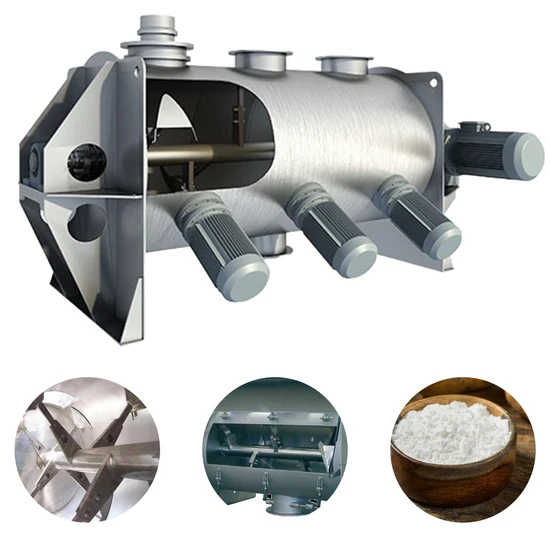

Unveiling the Horizontal Ploughshare Mixer - a state-of-the-art single-shaft forced mixing device ingeniously equipped with multiple sets of staggered ploughshare agitators. These meticulously aligned agitators are continuously installed to eliminate any mixing dead spots. During operation, the staggered ploughs generate persistent vortex centrifugal forces, resulting in overlapping and dispersing material flows. This dynamic creates a boiling convective circulation, ensuring rapid and thorough mixing of materials.
For challenging cohesive materials like fibers, damp clumps, or liquid-aggregated powders, our mixer includes high-speed choppers, expertly installed at a precise 45-degree downward angle on the mixer's drum side. The chopper blades extend into the drum, ensuring materials driven by the ploughshares enter the choppers' effective range, where they are swiftly sheared at high speed for efficient de-agglomeration and separation.
Discover the powerful Horizontal Ploughshare Mixer - a versatile mixing solution capable of handling solid powders and granules. Ideal for batch mixing processes involving liquid additives, this mixer is extensively utilized in the food, chemical, and construction materials industries. Noteworthy applications include food additives, pre-mixed mortar, composting technology, sludge treatment, rubber and plastics, and specialty construction materials. The potent cutting action ensures unparalleled mixing quality.
Stand-Out Product Features
1. Innovative Cantilever Shaft Structure, ensuring the bearings' ends avoid contact with the material.
2. Minimal gap between the agitator blades and container wall to prevent material adhesion .
3.
A standardized agitator drive box that guarantees stable equipment operation while minimizing maintenance costs.
4. Easy-Cleaning : Designed for swift and thorough cleaning between batches;
5. Durable Construction : Engineered with robust materials for long-term reliability;
6. Wide Application : Ideal for a range of industries including pharmaceuticals, food processing, chemicals, and cosmetics.
Essential Technical Parameters

Product Model	RPM-0.3	RPM-0.5	RPM-1	RPM-2	RPM-3	RPM-4	RPM-6	RPM-8	RPM-10	RPM-15
Effective Volume (m3)	0.18	0.3	0.6	1.2	1.8	2.4	3.6	4.8	6	9
Maximum Batch Output (kg)	200	300	600	1200	1800	2500	3600	4800	6000	9000
Rotation Speed (r/min)	130	130	85	63	63	42	42	27	33	28
Drive Power (kW)	5.5	7.5	11	15	22	30	45	37	75	90
Equipment Weight (kg)	550	800	1000	1800	2500	3500	4200	4500	5800	7000
Length	2200	2700	3200	4100	4350	4700	5400	5530	5600	6000
Width	900	980	1000	1250	1450	1500	1700	1560	2500	2800
Height	900	1200	1350	1600	1800	1950	2300	2200	2900	3000

Product Display Detailed Product Structure Versatile Application Areas
The superior Double Cone Mixer is perfect for industries such aspowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry
