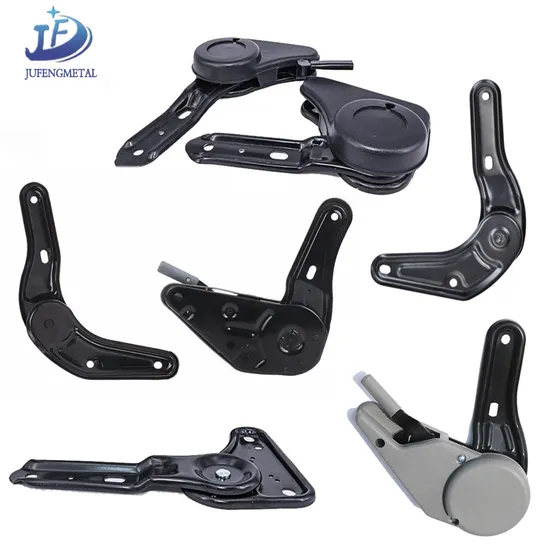

Factory Directly Adjustable Auto Seat Recliner Retrofitting Car Seat Recliner Seat Angle Adjuster for Car/Auto/Excavator/Bus/Tractor Parts

Product Description

Adjustable Auto Seat Recliner Racing Seat Recliner Retrofitting Car Seat Recliner Angle Adjuster for Car/Truck/Bus
Product Description

Product Category	Manual Recliner
Type of Key Component	Fan-shaped Toothed Plate, Circled Toothed Plate
Model No.	J06
Adjustable range	50-180degree
Material	Steel
Installation size	Mounting hole position of backrest:80mm Mounting hole position of the seat:102mm
Dia. Of hole	8.2mm
Return forth	28-32N
Single Side/Both Side	Both Side
Net weight/gross weight	1.6kg/2.5kg
Carton size	30*16*10cm
Application	Great for RV, caravan, and motor homes

Advantage: * The adjustable range is wide, it is 0-180 degree adjustment. so can make the seat have the bed function
* The teeth on the angle adjuster are durable and have a long service life
* 3mm thick material, strong bearing capacity Technical requirements:
1. The rotation of the corner device is flexible, like the sound of sound and other bad phenomena;
2. The handle operating force is 50~ 70N, and the horizontal clearance of the handle is less than
4mm(tail of the handle);
3. The rotary center 200mm, applying 96N force, the clearance of the adjusting Angle is less than
1.2mm;
4. Illustrates rotation Angle, initial position backward 78 °;
5. The other strength of the modulator should meet the requirements of GB15083.
6. In addition to the electroplating and blue parts, the appearance of each of the parts is
black spray, with no apparent defects.
Weifang Jufeng Metal Products Co., Ltd is located in Weifang the famous city in China and the world
center of kites. It is 140 kilometers far away from Qingdao port, the transportation is very convenient.
Our company use the location advantages of Shandong province to integrate resources so that we can
processing according to the drawings of customers. We mainly undertake the stamping parts and other machinery spare parts. We supply different kinds
of products with high quality and favorable price. We're pleased to get your Inquiry and we will reply
you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement
and innovation to meet the customers" for the management and "zero defect, zero complaints" as the
quality objective. We can produce according to the drawings of customers. Our Import and Export Department have many
years experiences of foreign trading and our products are mainly exported to the United States, Denmark,
Italy, Russia, Australia, Iran, Pakistan, South Africa etc. Over the years, company adhere to the guideline for management of "Quality first, Reputation first,
Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the
enterprise management. Our company will depend on superior quality of products and sincere service
to cooperate with domestic and overseas, new and old customers and establish eternal friendship to
create a bright future. Sincerely welcome your drawings and samples or any other kinds of designs,
our team will try the best to serve you and satisfy all the requirements you have.
Why choose us to produce your parts? 1) Experienced staffs will reply you in 24 hours. 2) Welcome OEM, ODM and Smaller quantity. 3) Exclusive and unique solution can be provided to you. 4) Special discount and protection of sales area. 5) Random quality inspection during production. 6) Delivery on time. 7) At a competitive price from our own factory. Q: Are you a manufacturing or trading company?
A: We are a manufacturer, and we have got a permit for import and export as well.
Q: How can I get the sample? What's the lead time?
A: Samples could be sent within one week, the lead time is 35-45 days.
Q: Do you provide ODM/OEM service?
A: OEM/ODM is welcome, From the concept to finished goods, we do all (design, prototype
reviewing, tooling and production) in the factory.
Q.Warranty?
A: We have a warranty for our clients. We will ship out the new replacements if clients get the item
with defect or broken frame.
Q. What is the payment terms?
A: Bank T/T, L/C.
Q. Which method of transport would be better?
A: Generally, we suggest making shipments by air which is faster and riskless for transportation. We
also can follow another transportation method you ask. You can look through our website to find your interest or email you any questions through the
below approach! We will reply to you within 12 hours.
