White PVC Black and Red Silver PVC Speaker Wire Bc/CCA/OFC Stranded Copper Conductor 14AWG 16AWG 18AWG 20AWG 22AWG 24AWG Speaker Cable

Product Description

Terms: 1.OEM is welcomed
2.ISO/CE/ETL/ROHS/UL/SONCAP and other certifications are available
3.Competitive price and high quality offered.
4. Best service for you!


Basic Info: 1. Name: : Copper Speaker Cable/ Speaker Wire
Speaker Cable for bus/home theater
2. Structure:
Conduct---pure copper/copper clad copper/copper clad aluminum
Insulation---transparent pvc/red golden/colorful/red&black
3. Size:
According to Standard/Sample/Customer's request.
4. The material of the inner conductor and outer sheath materials in accordance with customer requirements.

Speaker cable Standard Data

Model	Material		Diameter(mm)	Amount	Area	OD(mm)	Length	Color
10AWG	OFC/CCA		0.127	250	2.827	5.0*10	100M/Roll	As your required
12AWG	OFC/CCA		0.127	200	2.262	4.5*9	100M/Roll
14AWG	OFC/CCA		0.127	150	1.697	4.0*8	100M/Roll
16AWG	OFC/CCA		0.127	100	1.131	3.5*7	100M/Roll
18AWG	OFC/CCA		0.127	50	0.565	3.0*6	100M/Roll
Remark		All of above Material are up to the International Standard OFC 99.998% Purity.

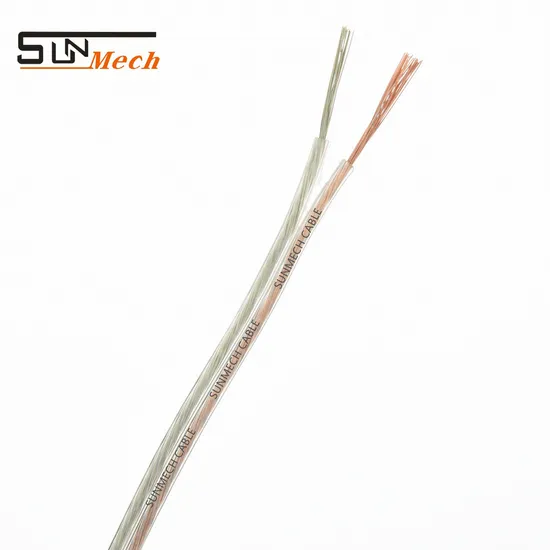

TRANSPARENT SPEAKER CABLE(BC/TC/CCA/CCS)
28AWG 2x7/0.12, OD: 1.6x3.2
26AWG 2x7/0.16, OD: 1.7x3.4
24AWG 2x11/0.16, OD: 1.8x3.6
22AWG 2x17/0.16, OD: 2.0x4.0
20AWG 2x26/0.16, OD: 2.2x4.4

Specification	Product Description
0.35 Square	2CX20/0.15mm O.D:2.0X4.0 PVC
0.5 Square	2CX28/0.15mm O.D:2.2X.4.4 PVC
0.75 Square	2CX42/0.15mm O.D:2.4X4.8 PVC
1.0 Square	2CX57/0.15mm O.D:3.0X6.0 PVC
1.5 Square	2CX85/0.15mm O.D:3.6X7.2 PVC
2.5 Square	2CX7X20/0.15mm O.D:4.2X8.4 PVC
4.0 Square	2CX7X32/0.15mm O.D:5.0X10.0 PVC
6.0 Square	2CX7X48/0.15mm O.D:5.5X11.0 PVC
