High Efficient Veneer Peeling Machinery for Plywood Woodworking Machinery

Product Description

A veneer is a thin sheet of wood, peeled from the surface of a rotating timber log. Veneer is used in furniture and decoration but primarily it is the main ingredient in the making of plywood.
The production of veneer consists of several steps, from handling and peeling logs to drying and patching the resulting veneer. Every step requires its own specific machinp. At MSTAR, we have perfected each step of the production both technologically and process-wise to create the most optimal veneer needed.
Our machines can create veneer out of all wood species, the most common being temperate zone broadleaves such as birch and poplar and softwoods such as pine and spruce. We also provide optimized solutions for tropical zone heavy hardwoods and plantation woods.
1.Full automatic, only need one operator for this whole line
2.high speed
3.work stable, don't need much maintain
4.Best quality and service for you

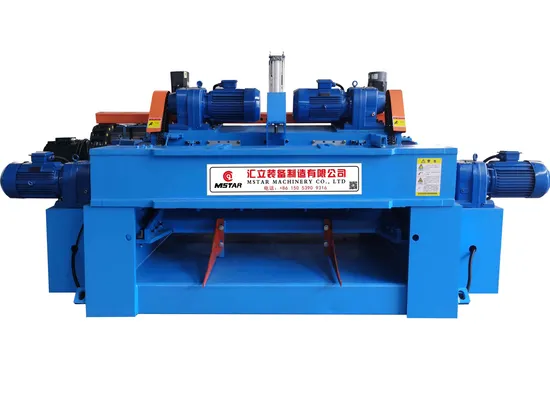

This 4 feet automatic veneer peeling line include:* Log conveyor for debarker* 4ft Log debarker machine
* 4ft edge cutting machine* Log conveyor for veneer peeling machine* 4 feet Veneer peeling machine* Veneer stacker
MSTAR MACHINERY CO., LTD is located in Linyi city of Shandong, China, and it is a modern professional enterprise and specialized in research, development, production and distribution of woodworking machineries. Our leading products are high speed spindleless veneer peeling line, sanding machine, hot press, saw, debarker and so on. Our high speed automatic veneer peeling line has become the benchmark of the peeling industry, with the advantageds of high efficiency, energy saving , time saving and labor saving.
By offering qualified products, perfect services and honest sales, we earn the applause from the world, We sincerely look forward to cooperate with you!

description	parameter	remark
roller length	1500mm
double roller power	7.5kw X 2	AC induction motors
single roller power	7.5kw X 2	AC induction motors
feeding power	11kw	Servo motor
cutter power	1.5kw	Servo motor
rubber roller power	1.5kw	AC induction motors
total power	44kw
roller gearbox	Hardened reducer	R87
feeding gearbox	Hardened reducer	R87
peeling speed	50-80 m/min
blade size	1500*180*16
screw size	90mm
machine opening	550
left log dia	28mm
peeling thickness	0.8 - 4.0
cutting width	>= 400 mm
control system		PLC+touch screen
machine size	4200*2100*1600
weight	6500kgs

SHOWING TIME
LUBRICATED SCREW AND NUT AND PEELING SLIDER
MACHINE IS CASTED, HEAVY DUTY MACHINE AND MACHINE IS MORE STABLE FOR LONG TIME RUNNING
TANK CHAIN FOR PROTEC ALL WIRES SERVO MOTOR MAKES MACHINE POWERFUL MD810 AND PLC COMBINATION

SHIPPING AND EXPORT:
