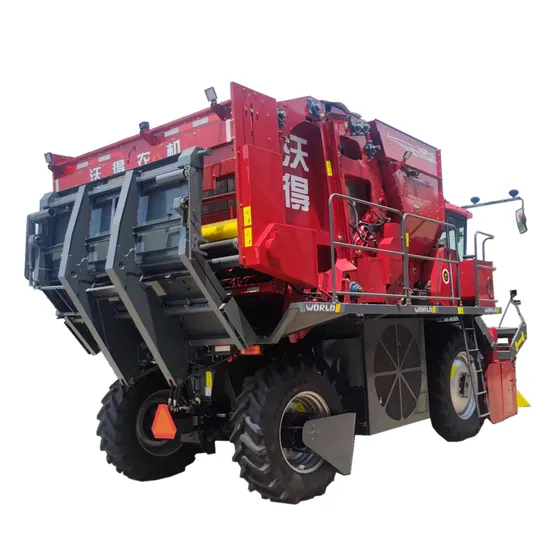

Fmworld 3-Rows Cotton Harvester
| US$520,000.00-570,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4MZD-3
Application
Cotton
Power Source
Diesel
Harvest method
Picking
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Backpack Type
Color
Red
Condition
New
Application Field
Agriculture
Warranty
2 Years
Weight(Kg)
18000
Rows
3
Row Space(mm)
762
Unloading Methods
Horizontal Scrolling
Transport Package
Nude
Specification
9300*3800*4300(mm)
Trademark
FMWORLD
Origin
China
Production Capacity
2000
Product Description
| No | Description | Specifications |
| 1 | Model | 4MZD-3 |
| 2 | Structure type | Self-propelled |
| 3 | Brake Type | Disc Brake |
| 4 | Supporting power model specifications | YCK11380-T401 |
| 5 | Supporting power type | Vertical, in-line, water-cooled, four-stroke |
| 6 | Supporting power rated power (kW) | 279 |
| 7 | Supporting power rated speed (r/min) | 1900 |
| 8 | Pure working hour productivity (hm2) | 1.0 |
| 9 | Overall dimensions in working condition (L×W×H) (mm) | 9300X3800X4300 |
| 10 | Dimensions in transportation state (L×W×H) (mm) | 10590X3800X3950 |
| 11 | Overall weight (kg) | 18000 |
| 12 | Bridge type | Ordinary |
| 13 | Number of rows of cotton harvester (rows) | 3 |
| 14 | Cotton picking head structure type | Horizontal drum |
| 15 | Number of cotton picking drums (pcs) | 2 for each cotton picking head |
| 16 | Number of spindle pick-up tubes on each drum (pcs) | 16(front roller) /12(rear roller) |
| 17 | The number of picking spindles on each picking seat tube (pcs) | 20 |
| 18 | The number of spindles picked on each cotton picking head (pcs) | 560 |
| 19 | Number of doffer trays (pcs) | 40 for each cotton picking head |
| 20 | Fan model | Centrifugal fan |
| 21 | flow rate of fan( m³) | 9500 |
| 22 | Wind pressure (total pressure)(Pa) | 8643 |
| 23 | Fan speed (r/min) | 4330 |
| 24 | Adapt to picking row spacing (mm) | 762 |
| 25 | Minimum boll height for picking (mm) | 180 |
| 26 | Number of cotton box compaction augers (pcs) | 1 |
| 27 | Maximum volume of cotton storage basket (m2) | 6.3 |
| 28 | Unloading method | Horizontal scrolling |
| 29 | Front wheel specifications | 460/85R38 |
| 30 | Rear wheel specifications | 420/85R30 |
| 31 | Front wheel track (mm) | 2286 |
| 32 | Rear wheel track (mm) | 2252 |
| 33 | Wheelbase (mm) | 3860 |
| 34 | Width of compression chamber of packing device(mm) | 2340 |
