KB055CP0 Robotic Thin Section Ball Bearings (139.7x155.575x7.938mm) Thin Section Bearings KB055CP0 Thin Walled Bearings

Product Details

Product Description

Product Description
KB055CP0 Robotic Thin Section Ball Bearings (139.7x155.575x7.938mm) Thin Section Bearings KB055CP0 Thin Walled Bearings
KB055CP0 Robotic Thin Section Ball Bearings (139.7x155.575x7.938mm) Kaydon Thin Section Bearings KB055CP0 Thin Walled Bearings

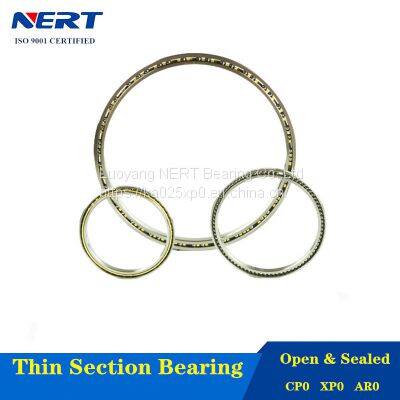

KB055CP0 ultra thin section radial contact deep groove bearings 139.7 x 155.575 x 7.938 mm, Thin Walled Bearing KB055CP0 With Cross Section 5/16 x 5/16 inch, id: 5.5 inch, OD:6.125 inch, Size: 5.5 inch x 6.125 inch x 0.3125 inch. KB055CP0 Radial contact ball bearing belongs to KB SERIES of thin section ball bearings, the KB SERIES include KBCP0, KBXP0 and KBAR0,which represented : Type-C : Deep Groove bearing, Type-X: Four Point Contact bearing and Type-A: Angular Contact bearing, the rolling body of these bearings is ball, which can be nylon balls or steel balls as requested. The bore size of KB SERIES are ranged from 2 inches(50.8mm) to 20 inches(508mm) and the outer diameters are arranged from 2.625 inches(66.675mm) to 20.625 inches (523.875mm), while the Cross Section is constant, that is 0.3125 inch (7.938mm).
Parameters:
Bearing Type: Ball
For Load Direction: Radial Contact ( Deep Groove Contact)
Construction : Single Row
Seal Type : Open
Cross Section : 5/16 inch x 5/16 inch (0.3125 x 0.3125 mm)
Plant Part Number : NKB055CP0
Thickness:7.938 mm
Dimensions:139.7 x 155.575 x 7.938 mm
Weight:0.186 KG
Basic dynamic load rating (Cr):3730
Basic static load rating (Cor)10490
Precision Rating: P0
Load Direction: Radial contact
Bearing Material:52100 Chrome steel
Cage material: Brass
Ball Material: Ceramics, Chrome steel
Shipping Ways: Courier, Sea, Air
Country of Origin: China KB055CP0
About Our Stock
For those items are available in the warehouse, we shall deliver them within 7 days upon receiving payment, and those are not available , we shall arrange to produce them however a minimum order is required, and the lead time shall be around 10-30 days.
NERT New Customer Bearings
Thanks to our experienced designer and manufacturing engineer, we accept customized design, some samples are shown below,if you are interested in the customized design, please feel free to leave a message or contact us directly. These bearings include: Customized bearing for UAV , driving ring, integral thin section rack and hybird rolling media phosphating thin section bearing.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer. Our registered name :Luoyang BOBI Precision Bearing Co.,Ltd.
Q: How long is your delivery time?
A: Generally it is 3-7 days after full payment if the goods are in stock. or it is 15-35 days, if the goods are not in stock, based on order quantities.
Q: What is your terms of payment ?
A: We accept T/T in advance , L/C .We'll keep you be informed by e-mail for the production and the photos of the products and packages shall be send to you by e-mail before you pay the balance.
Q: What's your shipment method?
A: We ship by Express FedEX, UPS, DHL, EMS and by air or sea for large batches.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: Is certified according to the latest standards?
A: We have certified by ISO 9001:2015
Q: How do you keep your customer satisfied and willing to set up long terms of business with your company ?
A1:We keep good quality and competitive price to ensure our customers to be benefit ;
A2: We respect every customer and serve them as a friend no matter where they come from.
Applications:
Our BOBI products are widely used in the following fields:
Medical Equipment, Rotary polishing equipment, X-ray – MRI, Rotary pipe cutting equipment, Rotary welding equipment, Semi-conductor equipment, Rotary actuators, Rotary work holding tables, Aerospace - auxiliary equipment, Turrets, Gun turrets, Turntables, Indexing tables, Missile launchers, Machine tools, Lathe accessories, Radar equipment, Robotics, Radar drives, Antenna pedestals, Packaging equipment, Satellite antennas, Pedestals Labeling machines, Truck mounted communication equipment, Food processing equipment, Bottling equipment.
