Scrap Tire Recycling Plant/Used Tire Shredder/Tyre Crusher Machine

Scrap Tire Recycling Plant/Used Tire Shredder/Tyre Crusher Machine

US$38,000.00-98,000.00 1 Set (MOQ)

Basic Info.

Model NO.
XKP-400/450/560
Voltage
380V
Structure
Vertical
Type
Tire Machinery
Type of General Rubber Machinery
Rubber Cutter
Type of Tire Machinery
Tire Shaping and Curing Press
Machine Type
Semi-Auto Rubber Powder Production Line
Application
Rubber and Plastic
Capacity
500kg/H,1000kg/H
Cooling Type
Water Cooling System
Final Product
Rubber Powder and Granules
After-Sale Service
Engineer Overseas Available
Machine Color
Customized
Transport Package
Exporting Standard (Wooden Box Packing)
Specification
CE/SGS/BV/ISO9001/; 2008
Trademark
EENOR
Origin
Qingdao
HS Code
84778000
Production Capacity
500 Set/Year

Product Description

Scrap Tire Recycling Plant/Used Tire Shredder/Tyre Crusher Machine
1.Main working process

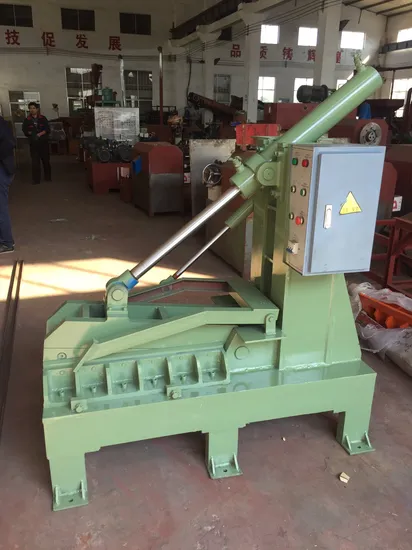

2.Tire Debeader ( oil hydraulic type)
Model: LS-1200 Capacity:20-40 tires/hour
Pulling force(T): 13
Max.tire diameter 1200mm
Power(KW): 11KW
Stroke distance: 1300mm
Dimension(L*W*H): 3.6*0.78*1.02
Weight: 2500KG
3.Whole tire cutter
Model :WTC1200
Capacity:20-40 tyres/h
Motor power:5.5kw
Tire range:Max 1200mm
Dimension:2080*1000*2130mm
4.Whole tyre shredder
Model
ZPS-900
ZPS-1200
Production capacity
1.5-2 Ton/hour
3.5-4Ton/h
Size of feeding
≤900 mm whole tyre
≤1200 mm whole tyre
Discharging particles
≤50*50mm
≤60*60mm
Motor powder
60 kw
110 kw
Discharging motor
2.2 kw
4 kw
Cutter rotate speed
16 r/min
31 r/min
Screener rotate speed
6 r/min
8 r/min
Dimension (L*W*H)
3.5*2.4*2.4 m
4.5*3.2*3.5 m
Weight
8.2 Ton
13.5 Ton
Details :
Knives material: H3 , Germany standard, forged, heat treatment by high frequency, some factory only use 45# steel, the Price is more cheaper(only 1/3 of H3 ), but the life is more shorter! The life of the knives is the most important for the shredder machine.
5.Tire crusher
Type
XKP-400
XKP-450
XKP-560
Front roll diameter(mm)
400
450
560
Rear roll diameter (mm)
400(grove roller)
450 (grove roller)
510 (grove roller)
Working length of rolls(mm)
600
650
800
Front roll surface speed(m/min)
17.32
23.2
25.56
Friction ratio
1:1.38
1:1.38
1:1.30
Max.nip(mm)
8
8
15
Production capacity(kg/h)
200-300
600-800
-1500
Motor power(kw)
45
55
75
Overall dimension(mm)
3950*1800*1780
4770*1846*1835
5064*2284*1978
Weight(kg)
7000
12000
18000
6.Big conveyor belt
7.Magnet separator
8.Fiber separator
Capacity:500-1000kg/h
Motor power:5.5*2+0.75 kw
Dimension:1.5*1.5*3.4(m)
Weight:about 1.5Ton
9.Rubber grinder
10.Machines installed in our workshop now
11.Machines installed in our workshop now
12.Loading the container
