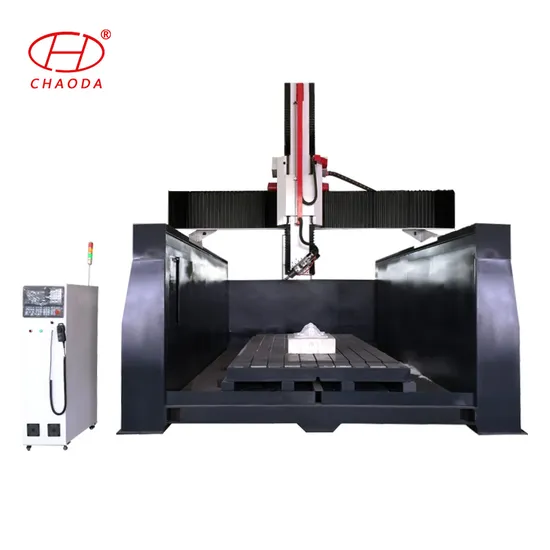

Large 4 Axis CNC Marble Granite Stone Cutting Machine with Rotating Spindle
| Negotiable | 1 set (MOQ) |
Basic Info.
Model NO.
JCS1530HL
Automation
Automatic
Control
CNC
Motor Power
High Power
Engraving Head Speed Adjustability
Wide Adjustable Range
Certification
CE, BV, TUV, SGS
Current
AC
Application
Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Buliding Decoration
Customized
Customized
Model
Large 4 Axis CNC Marble Granite Stone Cutting Mach
Applications
Marble, Stone, Granite, Glass, Wood, Plastics...
Working Size
800mm Diameter,1700mm Length
Table
T-Slot with Clamps with Water Tank
Spindle Power
7.5/11kw
Driving
Servo Motor and Driver
Inverter
Delta
Control System
Syntec
Cooling System
Water Cooling
Oil System
Automatic
Weight
7550kg
Voltage
AC380V, 3phase, 50-60Hz
Option 1
Rotary Device
Option 2
Vacuum Cup
Option 3
3D Scanner
Transport Package
Protected by Film and Fastened with Metal Wires
Specification
4 Axis
Trademark
CHAODA
Origin
Shandong, China
HS Code
8465990000
Production Capacity
100 Sets / Month
Product Description
Large 4 Axis CNC Marble Granite Stone Cutting Machine With Rotating SpindleAll machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Heavy duty steel structure, keep machine with very good stability. big power spindle,good at engraving,cutting,polishing,drilling and milling. Spindle of the machine rotate ±90 degree,can make engraving on different angles,like arc-surface milling,bending surface machining... Adopt linear type automatic tool changer with 8 tools magazine, spindle change tools automatically,no need manual work. Water proof,dust proof.
| Working size | 1500*3000*1000mm*±90 degree (working size could be customized) |
| Lathe bed structure | heavy duty steel wall structure |
| Table | T-slot with clamps,with water tank |
| X structure | Rack and pinion, linear square rail |
| Y structure | Rack and pinion, linear square rail |
| Z structure | Ball screw, linear square rail |
| Resolution | 0.001mm |
| Max. travelling speed | 0-55000mm/min |
| Max. working speed | 0-20000mm/min |
| Spindle power | 11KW water cooling ATC spindle (option: 7.5kw ) |
| Tool magazine | Linear type auto tool changer,8 tools ability |
| Working mode | Japan YASKAWA servo motor and driver |
| Operating system | 4 axis Syntec with handwheel |
| Command code | G code(*uoo,*nc,*mmg, *plt) |
| Working voltage | 3 phase AC380V 50Hz |
| Running circumustance | Temperature: 0°C~45°C relative humidity: 30%~75% |
It can process many materials, like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone, Travertine,
uartzite, Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel,
Aluminum block, Copper.,etc.
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
