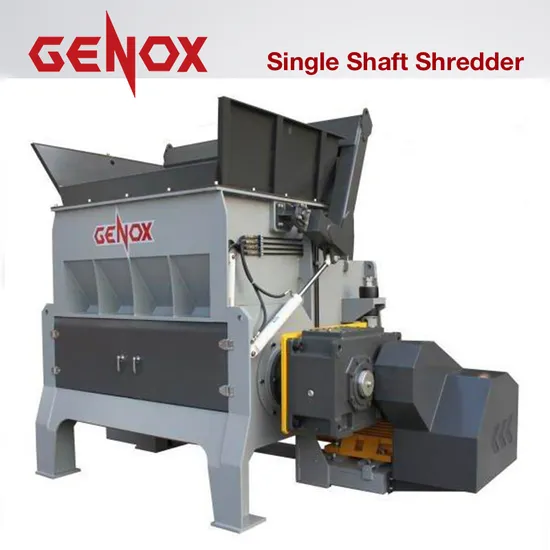

Side Feeding Waste Plastic/HDPE Pipe/Plastic Bottle Single Shaft Shredder

Product Description

Side Feeding Waste Plastic/HDPE Pipe/Plastic Bottle Single Shaft Shredder
Product Description
GENOX Single Shaft Shredders
VISION Series Single Shaft Shredders are small to medium size reduction machines suitable for processing a wide range of materials to a uniform particle size. The products can often be sold as is, or be sent for further processing through additional equipment. Throughputs typically range between300kg/hr 5, 000kg/hr+ depending on the model, material type and application as below:
· Plastics Mouldings, Purgings/Lump, Profiles, Films etc.
· Timber/Wood Pallets, Joiners Waste, Green Waste etc.
· Paper & Cardboard Confidential Documents, Production Waste, Packaging Materials etc.
· Copper Cable Household, Telecoms and Industrial Cables including S. W. A
· Aluminum Used Beverage Cans (UBC's), Swarf, Cables etc.
· Textiles Carpet (Rolls & Tiles), Garments etc.
· Security Destruction Counterfeit Items, Faulty Goods, Out of Date Stock etc.
· Foam Production Waste etc.
Specification

Model	V800	Dimension (LXWXH)(mm)	2800x1780x2080
Hopper inlet(mm)	1080x800	Ram(mm)	815
Rotor diameter(mm)	400	Rotation speed(rpm)	80
Rotor operation length (mm)	800	Screen diameter (mm)	40
Rotor knife (pcs)	35	Counter knife (pcs)	4
Driver power (kw)	37	Weight (kg)	3980

Standard Features

· Energy Efficient + Maximum Cutting Force & Productivity
· Shock Absorbing Gearbox reduces Stress on Drive Components
· Rotor Knives can be rotated and used on four edges before replacement.
· Long Life Counter Knives can be adjusted to maintain cutter clearance
· Quick Change Screens for accurate particle size control
· Segmented Shredding Chamber Floor with Brass Guides & PU Slides
· Twin Speed Hydraulics with integrated air cooler
· Stand Alone Electrical Control Panel with Siemens PLC Control System
· Tested, Approved and Certified to the applicable CE safety standards
Detailed Photos
Company Profile
FAQ
1.Question:Will we provide pre-sale services ?
Answer:Genox consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
2.Question:Is our after-sales service excellent ?
Answer:Genox's skilled technicians are available to assist with onsite installation,commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Genox technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Genox holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.

3.Question:Will we provide technical support ?
Answer:Genox provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
