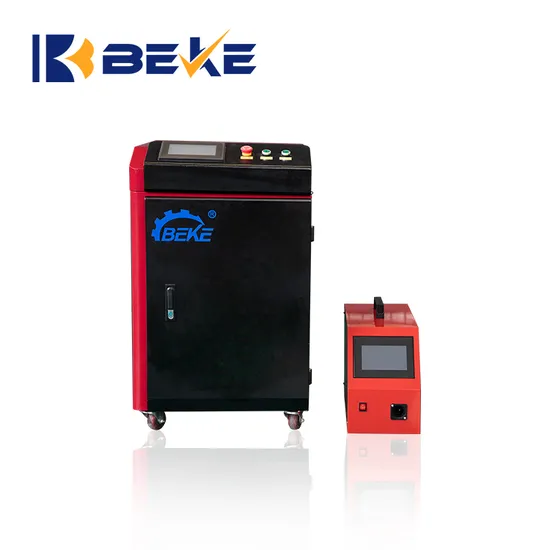

CNC Handheld Laser Welder Machine
Basic Info.
Model NO.
Laser Welding Machine
Application
Manufacturing Industry
Technical Class
Continuous Wave Laser
Control
Automatic
Power Density
Heat Conduct Welding
Laser Classification
Optical Fiber Laser
Type
Optical Fiber Transmission Laser Welding Machine
Model
Bk-2000W
Laser Source
Max
Water Chiller
Hanli
Laser Head
Swing Laser Head
Transport Package
Wooden Box or Container Directly
Specification
1400*680*1500mm
Trademark
BEKE
Origin
China
HS Code
8515809090
Production Capacity
100 Set/Month
Product Description
Product DescriptionTechnical Data
| Power | 2000w |
| Laser wavelength | 1070 nm |
| Fiber length | Standard 10M |
| Operation mode | Continuous / modulation |
| Welding machine speed range | 0-120mm/s |
| Cooling water machine | Industrial thermostatic water tank |
| Working environment temperature range | 15-35ºC |
| Humidity range of working environment | < 70%, no condensation |
| Recommended welding thickness | 0.5-3mm |
| Welding gap requirements | ≤0.5mm |
| Working voltage | AC380V |
| External dimensions | 1400mm*680mm*1500mm |
| Equipment weight | 240KG |
| Wide range of applications, cutting and welding: It can weld a variety of materials: carbon steel, stainless steel, galvanized sheet, white iron, copper, aluminum, etc., and can also cut a variety of metals. One-time forming, high efficiency and high speed: single-sided welding, double-sided forming, support fillet welding, vertical welding, tailor welding, stitch welding and other welding forms, which are 5 to 10 times faster than traditional welding, greatly improving production speed and efficiency. Consistent welding seam, neat and beautiful: the interface is firm, the welding seam is consistent, neat and beautiful, and does not deform. | |
