A-Z Automatic complete production line 19 L Bucket drum jar 5 Gallon mineral water bottle filling line bottling machine

A-Z Automatic complete production line 19 L Bucket drum jar 5 Gallon mineral water bottle filling line bottling machine

Product Description

Product Description
Product Description
Brief introduction :
1) This 5 gallon water filling line specially produces 3&5 gallons barreled drinking water.
(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
(5) This 5 gallon bottling line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
(6) It has features of complete functional, easy operation, and high degree of automation. It is a new kind of 5 gallon barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.

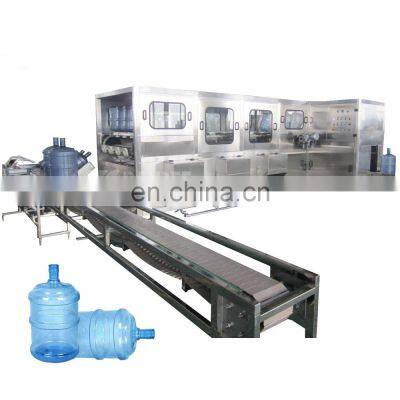

QGF-300 5 Gallon water filling machine
QGF-300 5 Gallon / 20liter water filling line with washing system
No.
Machine name
Model
Size(mm)
1
Automatic decapper
BG-1
850x650x1800
2
Interior and exterior brushing machine
STNW-2
2210*1340*2140
3
QGF-300 main washing filling capping machine
QGF-300
5000×1580×2000
4
Light checker
DJ-1
300×700×1000
5
Shrinking machine

900x700x1200
6
Feeding conveyor belt
Plastic chain

7
Products outlet conveyor
SUS304

8
Roller conveyor
SUS304

9
Laser / ink jet printer
20W
340*220*100

Detailed Images
Automatic decaper
Automatic cap pulling out machine is corollary production equipment specially designed for 5 gallons barrel drinking water filling and production line.
It is compact, high working efficiency and stable and reliable, high degree of automation, it is the machine electrical Trinity corollary equipment for 5 gallon barrel automatic water production line.
Automatic bottle interior and exterior brushing machine:
Automatic barrel external brushing machine is special use for 5 gallon barreled drink water production line. Especially for mineral drink water, can effective remove the deposit and alga materials bring by mineralize on the bottom of the barrel, this machine is under bottom of the barrel, both rinsing the inside and outside the barrel, obvious improve the rinsing efficiency, reduce the second pollution by second manual brushing and fall the labor intensity.
Automatic bottle loader:
The empty barrel cleaned by inside and outside brushing machine sending through automatic loading system by transmission chain, loading barrel counter counting 2pcs barrels, blocking barrel cylinder action to stop feeding barrel, loading and pushing barrel action, and pushing barrel to barrel inverting frame reset, loading cylinder action to invert the barrel to level position and waiting for feeding barrel.
Washing part:
It has 2 rows and 9 steps washing
Water amount of filing: 6T/H
Consumption of water: consumption of water 1T/H(disinfection water reuse, water reuse one time)
Filling part:
Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
Capping part:
Liquid level difference is controlled in 1cm.
Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.
Light checker and steam heating shrink machine:
Inspection light is used for lighting when inspect whether exist sundries in barrel.
Heat shrinking machine is consist of water vessel and electric heat up, electric heat up to produce steam.
Automatic bag packing machine:
Automatic film feeding, feed, bag, sealing once completed, save manpower, improve efficiency, and realize unmanned operation docking production line. Teflon anti-stick coating alloy thermostatic sealing knife, sealing temperature is extremely sensitive and accurate, it can be arbitrarily set, sealing wire is not easy to crack, no edges, sealing more beautiful.
Leakage tester:
leakage checking machine is a professional machine to check leakage, after gas filling, pressure keeping, pressure testing, the machine will push damaged barrels out of conveyor.
Bottle conveyor system:
Including: empty feeding system, plastic chain
Full barrel conveyor system, SUS34 material

Company information
Workshop detail
Our team
Our exhibition
FAQ
Q1: How to find suitable 5 gallon water filling machine or complete 5 gallon water production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
Q2: How to start a water factory business ? What's my budget?
A2: First confirm the source water, send the water samples to your local department and get the water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 6000liters/hr, etc, then we can know to choose which model for you, like QGF-80, QGF-120, QGF-150, QGF-300, QGF450, QGF-600,etc.
Q3: How to confirm the bottle shapes that is very attractive for your customer ?
A3: Our engineer can design 5 gallon bottle shapes with your company Logo for you.
Q4: Which kinds of machines included in one complete 5 gallon water production line?
A4: Semi auto or Automatic Decapping machine, internal and external brush washing machine, main 5 gallon washing filling capping machine, automatic labeling machine (optional) light checker, shrink tunnel, feeding bottle conveyors, bottle out conveyors.
Q5: Are you a trading company or a manufactory?
A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q6: Do you have technical support after we purchased your machines?
A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q7: If you buy our machines, can you offer us wear-out spare parts?
A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
