Factory Direct Supply Concrete ultrasonic tester Ultrasonic Pulse Velocity Test

Product Description

Product Description

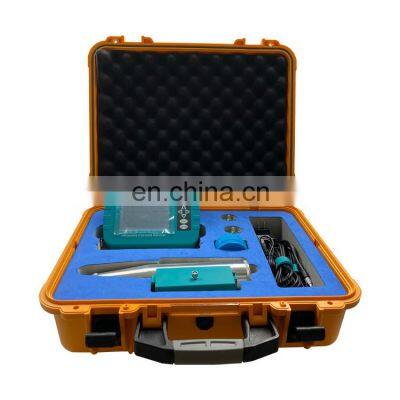

Product Usage and FeaturesConcrete Ultrasonic Pulse Velocity TesterUSAGE OVERVIEW:Concrete Ultrasonic Pulse Velocity Tester is used for testing both the surface and inner hardness of concrete with non nuclear method.Concrete Ultrasonic Pulse Velocity Tester/Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.ParametersProduct nameU200 Ultrasonic pulse velocity testerTypeGTJ-U200Host ParameterScreen Size:5 inchesVolume:195*140*45mmWeight:0.85kgWaterproof level：IP65Ultrasonic indication Error±0.1μsUltrasonic Work Frequency50KHzUltrasonic Frequency Range5Hz~500KHzStiffness of Spring Strike785.0±40.0 (N/m)Impact Length of Ram75.0±0.3mmImpact Energy2.207JAverage rebound value80±2Power Supply ModeLarge capacity lithium battery. Working time over 8 hours.Working Environment-10℃~40℃Packing Material: engineering plastic Volume:420*140*335mm Weight:5.5KGsDetailed ImagesPRODUCT FEATURE: 1. It adopts three anti- shell design waterproof, dustproof and shockproof;2. Multi-function: Two methods to test the compressive strength of concrete: rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.3. High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;4. Easy to use: full English interface, with prompts, quick learning to conduct on-site testing;5. Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.Contact USCangzhou Lovely Technology Co., Ltd.Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide.Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.Our Customers and patent certificatePacking & DeliveryFAQQ1: How long is the lead time?A: Normally 3-7 days. Depend on the order quantity.Q2: What is the transportation method?A: By Express, By air or By Sea.Q3: What are the payment terms?A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.Q4: How is the after-sales service?A: 12 months quality warranty with online technical support.Q5: Are there any factory quality certificates?A: We have the ISO certificate and National patent certificates.Q6: Is Lovely test trustworthy?With more than 12 years' production experience. We would give you an excellent experience!
