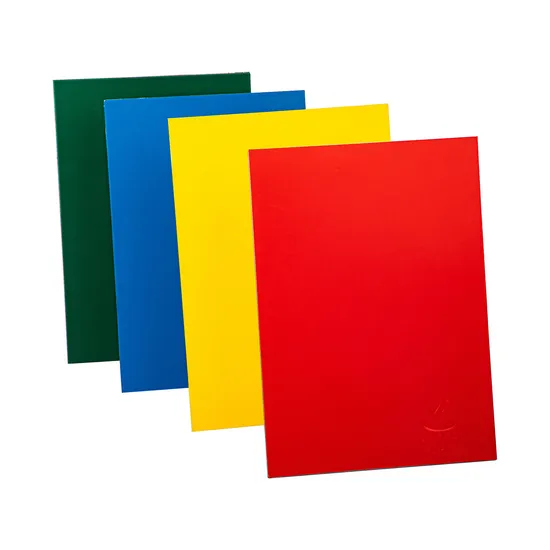

Acm ACP for Building Cladding Indoor and Outdoor

Acm ACP for Building Cladding Indoor and Outdoor

US$13.60 600 Square Meters (MOQ)

Basic Info.

Model NO.
Geely-018
Aluminum Thickness
0.4mm
Function
Fireproofing, Anti-static, Anti-Bacterial, Mould-proof
Usage
External Wall, Curtain Wall, Interior, Advertising
Thickness
4mm
Aluminum Coil
0.4mm
Transport Package
Wood Pallet
Specification
GB/T17748-1999
Trademark
Geely
Origin
China
HS Code
39189010
Production Capacity
500000 Square Meter/Square Meters Per Month

Product Description

Specifications
1) Width:1220/1250/1500mm etc
2)Length:2440-6000mm
3)Panel Thickness:2-6mm
4)Alu thickness:0.06-0.5mm
5)Coating:PE/PVDF
Dimension

1. Thickness: 2mm,3mm,4mm,5mm,6mm
2. Width: 1220mm,1250mm,1500mm,1570mm
3. Length: 2440mm,3050mm,3200mm,4200mm( max:6000mm)
4. Weight: 5.5kg/sqm baesd on 0.5/4mm thickness
5. Standard size:1220*2440mm
6. Qty/20'fcl:4mm/4500sqm; 3mm/4800sqm
7. Non-stanard size are available according to requirement

Feature :

- Light weight, high strength, extreme rigidity, superior impact resistance,

- Excellent surface flatness and smoothness ,

- Heat insulation, sound insulation, fire-resistance,

- Acid-resistance, alkali-resistance, good weatherproofing and non-resonance,

- Various uniform colors ,can be easily processed and fabricated, quickly installed,

- Elegant and magnificent, good flexibility fits various designs,

- Easily maintenance, simply cleaning.

Applications:

1. Constructional exterior curtain walls;

2. Decorative renovation for storey-added old buildings;

3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;

4. Advertisement board, display platforms and signboards;

5. Wallboard and ceilings for tunnels;

6. Raw materials in industrial purpose;

7. Materials used for vehicle and boat.
Panel Coating Al Thickness
(mm) (mm)
4MM (Exterior Used) PVDF 0.50
0.45
0.40
0.30
0.20
PE 0.50
0.45
0.40
0.30
0.21
