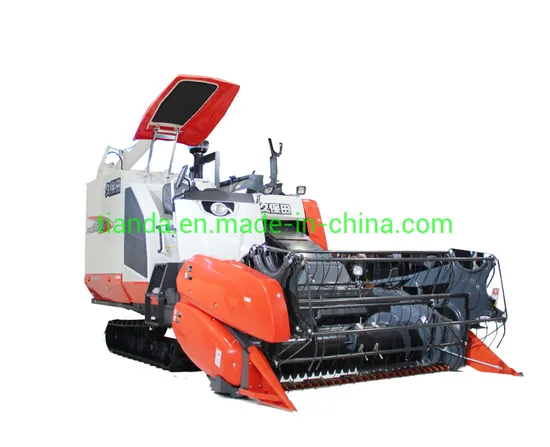

Kubota Full Feeding Combine Harvester for Paddy Wheat 688q DC70
| US$5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
688Q
Power Source
Diesel
Harvest method
Full-Feeding
Drive Type
Gear Drive
Transmission
Hard Shaft
Certification
ISO9001:2008
Color
Orange
Condition
Used
Application Field
Agriculture
Transport Package
Naked Packing
HS Code
8433510090
Production Capacity
2000
Product Description
We have used kubotar 688Q and 988Q combine harvester, the price is different according to working hours and reconditiona..the below is specification:| Model | 4LZ-2.5(PRO688Q) | 4LZ-2.5(PRO688Q) | |||
| TYPE | GRAIN TANK | BIG GRAIN TANK | |||
| Dimension | length(mm)(transportation state/working state) | 4860/4860 | 4950/5010 | ||
| width(mm)(transportation state/working state) | 2295/2980 | 2440/2650 | |||
| height(mm)(transportation state/working state) | 2815/2815 | 2800/2815 | |||
| operating mass(kg)/structure mass(kg)/ | 2780/2895 | 2790/2905 | |||
| Engine | Model | V2403-M-DI-T-ES04 | |||
| type | Turbo 4-cylinder Indirect- injection Water-cooled | ||||
| Volume(L) | 2.434 | ||||
| Rated power(HP) | 71.5 | ||||
| Rated speed(r/min) | 2700 | ||||
| Oil | Diesel(0#) | ||||
| Tank volume(L) | 60 | ||||
| DRIVE TRAIN | Track | Length(mm) | 1680 | ||
| Distance(mm) | 1150 | ||||
| Type[Pitches(mm)×Sections×Width(mm)] | 90×51×400 | 90×51×450 | |||
| Pressure (kPa) | 20.3 | 18.1 | |||
| Min. Groud(mm) | 275 | ||||
| Gearbox type | Mechanical Transmission +HST | ||||
| No. of speed | 3F+3R | ||||
| Working Speed(km/h) | Low:0~3.49,Sta ndard:0~4.93,Walking:0~6.66 | ||||
| CUTTING BAR | CUTTING WIDTH (mm) | 2000 | |||
| MINIMUM HARVESTING HIGHT(mm) | 40(TIP OF BLADE) | ||||
| SLEEPING PADDY | STRAIGHT:85DEGREE·REVERSE:70DEGREE | ||||
| THRESHING CYLINDER | THRESHING WAY | AXIAL FLOW TYPE | |||
| THRESHING | SIZE(DIA.×LENGTH)(mm) | Φ620×1790 | |||
| CYLINDER | RPM(r/min) | 560 | |||
| DISCHARGING | GRAIN TANK(L) | 420 | 1000 | ||
| GRAIN TANK | DISCHARGE PIPE(PCS) | 2 | Hydraulic Discharge auger | ||
| CROPS | RICE, WHEAT | ||||
| WORK EFFICIENCY(hm²/h) | 0.2~0.52(STRAIGHT, DRY FARMLAND) | 0.2~0.53(STRAIGHT, DRY FARMLAND) | |||
