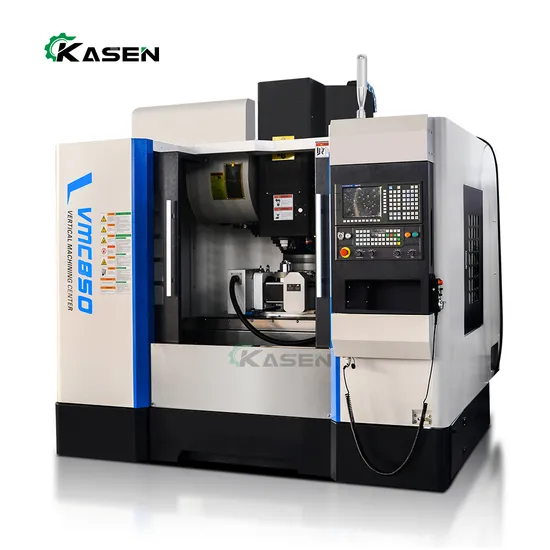

Vmc850 Vertical Machining Center Fanuc GSK Operating System

Vmc850 Vertical Machining Center Fanuc GSK Operating System

US$7,500.00
1-4 Pieces
US$5,500.00
5+ Pieces

Basic Info.

Model NO.
VMC850
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
5-Axis Vertical CNC Machining Center
Table Size
1000X500mm
Spindle Speed
8000rpm
Spindle Taper
Bt40
Color
Custom-Made
Main Motor Power
7.5kw
Max. Table Load
1000kg
Atc
24
Tool Changer Type
Disc Type
Product Features
Metal Milling
X/Y/Z Guide Rail Form
Taiwan Hiwin /PMI
Bearings
NSK
Voltage
380V/50Hz3pH
Feed Speed(mm/Min)
1 - 24 mm/Min
Type
Vertical Machining Center
Transport Package
Free Fumigation Plywood Packaging Steel Base
Specification
2780*2450*2500mm
Trademark
KASEN
Origin
Shandong China
HS Code
8457101000

Packaging & Delivery

Package Size
2600.00cm * 2280.00cm * 2550.00cm
Package Gross Weight
5600.000kg

Product Description

Product Description
Taiwan high precision Vmc850 Vmc855 Fresadora Vertical Machining Center Vmc 5 Axis CNC Milling Machine
Features:
1. The CNC Machine Tool Body Has Undergone a Complete Casting Process To Ensure The Quality Of The Product
2. Taiwan Spindle (Speed, Brand, Can Be Matched According To Customer Requirements)
3. Taiwan Ball Screw And Locking Nut
4. Taiwan Pressure Cylinder
5.Japanese NSk Bearing Germany R+W Coupling
6. Automatic Lubrication System
7.Chip Conveyor At Optional (According To Customer Requirements) Optional Configuration:
System: Syntec,Siemens,Fanuc Mitsubishi
24 Arm Tool Magazine
4th Axis, 5-axis
Spindle Oil Cooling
Chip Conveyor Oil-Water Separator
Air conditioner
Direct-connected electric spindle 12000RPM
Main technical specifications:
Specifications Units VMC850
Table size mm 1000x500
X axis travel mm 800
Y axis travel mm 500
Z axis travel mm 500
Max. worktable load kg 500
T slot(number-width-pitch) 5-18x100
Max. spindle speed rpm 8000(Optional:12000 )
Spindle taper mm BT40
Main motor power kw 7.5/ 11
X/Y/Z rapid traverse speed m/min 24/24/20
(Optional:48/48/36 )
Cutting feed speed mm/min 1-10000
Guide rail type Linear rail
Distance from spindle axis to column surface mm 525
Distance between spindle nose and worktable surface mm 140-740
Positioning accuracy mm ±0.005
Repeat positioning accuracy mm ±0.003
Tool magazine Arm 24/ 16
Max. tool diameter mm φ78( Adjacent)/ φ120(Apart)
Max.tool weight kg 8
Machine weight kg 5600
Overall dimension mm 2600x2300x2550

Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Wire cutting machine,Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines.

Company Profile


After Sales Service
SERVICE SUPPORT
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.

2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.

3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.

4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
