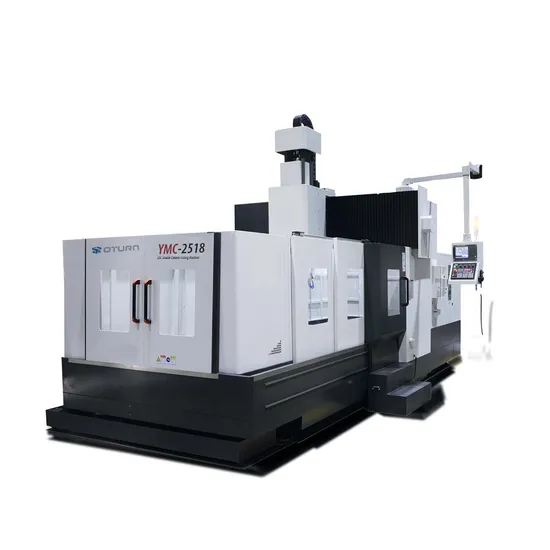

Advanced Heat Treatment CNC Gantry Machine Ymc2518 for Stability

Product Description

Product Description
Exceptional Rigidity and Long-Term Precision
Our Multi-Function VMC Machining Center embodies engineering excellence and cutting-edge technology. Key components such as the base, workbench, column, spindle box, and saddle are meticulously analyzed using Finite Element Analysis (FEA). This process ensures an optimized design, lightweight structure, and unparalleled rigidity. The short distance between the spindle center and guide rail surface minimizes flipping torque, thereby enhancing processing stability. Utilizing high-strength, high-quality cast iron and resin sand molding, coupled with an exhaustive heat treatment process, residual stress is entirely eliminated. The contact surfaces undergo meticulous manual scraping to fortify the structural rigidity of the entire machine. Our comprehensive product line features an automated exchange head library and a versatile vertical and horizontal tool changing system, delivering automation, efficiency, and high productivity. The modular spindle design supports various cutting characteristics, meeting diverse machining requirements. The Y-axis is equipped with an ultra-high rigidity roller type linear slide rail, harmonizing the robustness of hard rails with the fast, low-wear advantages of linear slide rails, significantly enhancing rigidity and control.
This advanced machine adopts internationally acclaimed brand roller guide rails across the three axes, ensuring exceptional rigidity and dynamic precision. The three-axis transmission features large-diameter grinding ball screws from Taiwan, characterized by their compact structure, smooth operation, minimal thermal elongation, and superior accuracy. The screw support forms a highly stable, high-rigidity mechanical transmission system. High-precision spindles provide reliable, consistent lubrication to spindle bearings, while the standard spindle oil cooling system maintains long-term operational stability.
Product Parameters

DESCRIPITION	UNIT	YMC-2518
Travel X/Y/Z	mm	2600/1800/1000
Table Size	mm	2600×1600
Max.Table Load	kg	8000
Distance from Spindle Nose to Table	mm	200-1200
Distance between Column	mm	1800
Spindle Tapper		BT50/φ190
Spindle RPM		6000
Spindle P.R	kw	22/26
G00 Feed Rate X/Y/Z	mm/min	10000/15000/10000
G01 Feed Rate	mm/min	1-8000
Machine Weight	kg	23000
Collant Tank Capicity	liter	600
Lubrication Tank	liter	4
Power Capicity	kVA	45
Air Pressure Request	kg/cm²	5-8
ATC Type
ATC Tapper		BT50
ATC Capicity		24/32(40)
Max.Tool dia./length	mm	φ125/400
Max.Tool Weight	kg	18
Machine size	mm	6900*3400*3600
Positioning accuracy	mm	0.008/300
Repeatability	mm	0.005/300
Min. tool change time	s	2.9
