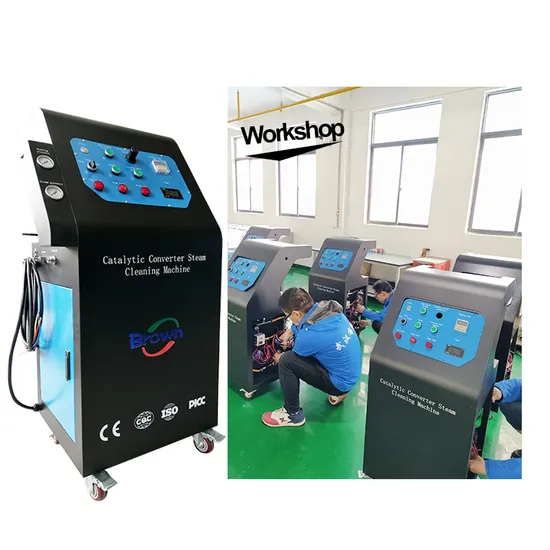

Automatic Steam Car Wash Machine DPF Doc SCR Catalyst Exhaust System Cleaning Machine

Product Description

We are a manufacturing high-tech enterprise integrating R&D, technical services and sales, professional in producing kinds of engine carbon cleaning machines, catalytic converter cleaning machine, SCR/DPF cleaning machine, EGR cleaning machine etc.With CE /ISO certificated, 27 National Patents.We promise: 1 year warranty free of charge, lifelong time technical support and after sales service! We also offer all kinds of OEM/ ODM services.
Product Parameters

Model number	BR-TGT-B03
Dimensions(L*W*H)	580*655*1170mm
Weight	90Kgs
Voltage	220V
Rated power	6kw
Steam pressure	0.4-0.5Mpa
Steam temperature	140-150ºC
Liquid filling tank	15L
Cleaning agent tank	1L
Steam pipe length	3M
Air supply	0.3-0.4Mpa

Product Description
Advantages:
1.High temperature high pressure steam sustained steady output, completely removes dirty blockage 80-90%.2.By using special designed fixture+eco-friendly cleaning agent, soaking and steaming for catalyst/DPF, efficiently soften the internal carbon deposits&complex compound.3.Unique steam pressure bursting function,even seriously blockage also can be dredged.4.Decrease exhaust emissions (NOX decrease 25-40%,CO decrease 50-75%, HC decrease 25-40%)5.Save fuel consumption 5-10%6.Improve power 10-20%, restore vehicle performance7.Efficiently increase lifespan of catalyst converter/DPF.
Detailed Photos
Installation Instructions
Connection method
Silicone ball connection method:The connection method of the three-way catalytic converter with a diameter of φ35-60. After installing as shown in the figure, lock the silicone ball and tighten the nut to make the silicone ball expand and squeeze the inner wall of the catalytic converter, thereby blocking one end of thecatalyst for cleaning.Nozzle connection method:Suitable for connection methods that are inconvenient to disassemble the three-way catalytic converter, Install direct nozzle or curved nozzle through the oxygen sensor mounting hole on the three-way catalytic converter for cleaningFixture connection method,Suitable for flange-type three-way catalytic converter connection, with good sealing effect and high cleaning pressure
Certifications
Exhibition
Company Profile Wuhan Brown Environment&Energy Co.,ltd is a high-tech enterprise integrating research and development,manufacturing,technical services and sales. We are professional in researching and producing kinds of engine carbon cleaning machines, catalytic converter cleaning machine, diesel SCR/DPF cleaning machine, EGR cleaning machine and relevant cleaning chemicals etc.There are a professional engineer team for machine designing and technical consulting, complete production line include electric wiring, programming, machine assembling, testing and after-sales service,committed to provide superior quality products and satisfied services for customers. We have obtained a number of national invention patents,with full intellectual property right. All products have passed ISO, CE certificates and authoritative test report. With advanced technology, superior quality, high performance, our products and services obtained perfect evaluation and high reputation from both domestic and overseas market. Our company adhere to the business philosophy of green,energy saving and emission reduction,environmental protection,recycling and sustainable development, devote ourselves in offering most professional solution for vehicle caring&maintenance industry and exhaust emission treatment, strive to be the most famous brand in new energy industry. We will continue as always keep technical innovating and taking customers' needs as the guidance, to be your vehicle&environment protection service expert.
