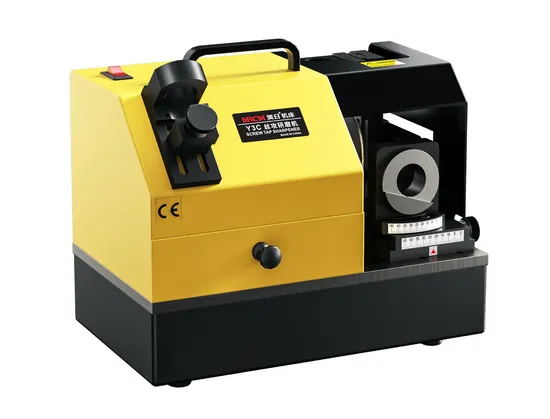

Mr-Y3c Hot Sale High Quality Screw Tap Grinder/Re-Sharpener

Product Description

Product Description
1.Specialize in grinding screw tap. It's precise, easy operation and efficient, also can save large sum of expense for
purchasing blade annually.
2.With Taiwan diamond wheel, can be secondary re-used, with accurate angle and long service life.
3.The electrical controlled high-rate DC motor features stable power, strong horsepower, efficient and long service life.
4.Patent product Y3C can grind all the front cutting face, also include the front cutting lip.

Specification

Model	MR-Y3C
Range	M5-M20
Point Angle	5°-30°
Power	AC220V
Motor	160W
Speed	4400rpm
Dimension	36*27*31cm
Weight	16KG
Standard Equipment	Grinding wheel :CBN (for HSS)×1
	Six collets: Φ5,Φ7,Φ8,Φ9,Φ13 ,Φ14
	Two piece collet chuck: 3 flutes *1 piece; 4 fluts*1 piece
Option Equipment	Collets: Φ6,Φ10,Φ11,Φ12
	Grinding wheel :SD (for Carbide)

Details:

MR-Y3C

SCREW TAP SHARPENER
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results! INSISTING ON ORIGINAL DESIGN FROM CHINA

Sharpener slots Sharpener straight grooves Sharpener guide angle

EASY TO DO THE SCREW TAP SETTING
According the diameter of the mill to adjust the scale, the operation steps are clear.
High precision and high efficiency.

EASY FOR SCREW TAP GRINDING
According the the grinding hole, insert the chuck.
It is very clear to see the grinding position when open the cover of grinding wheel.

Standard accessories:

Grinding wheel ×1 piece Standard is CBN for HSS material	Collets ×6 pcs (M5-M20mm)	Collet chuck ×2 piece

FAQ
1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you
can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
8. Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
