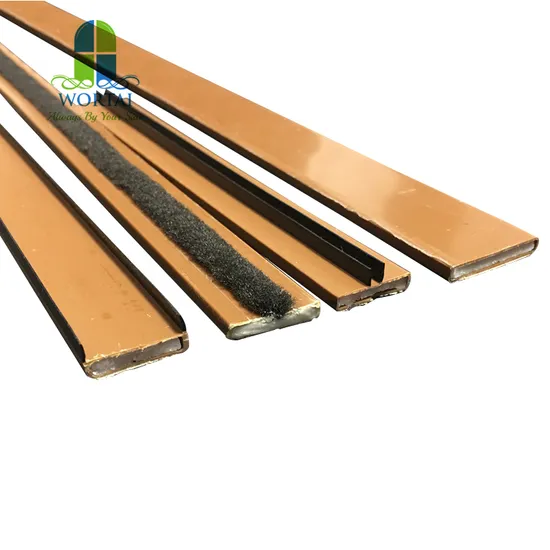

Fire Rated Door Seal Smoke Intumescent Graphite Expansion Seal Strip

Product Description

fire rated door seal smoke intumescant graphite expansion strip

Combined intumescent smoke and fire seals which are heat activated. It is unobtrusively set into a machined groove (10x6mm) around the perimeter of timber frame or door edges. Intumescent fire door seal is based on expansion graphite, it is used for fire door and window or any place to prevent fire, smoke & acoustic through out, obtained both intergrity and insulation rate as required.

Product name	fire rated door seal smoke intumescent graphite expansion strip
Material	Expandible graphite and Thermoplastic element composition
Size	Regular size: 2mm*20mm*1050mm, 2mm*15mm*1050mm, 2mm*10mm*1050, 4mm*20mm*2100mm, 4mm*15mm*2100mm, 4mm*10mm*2100mm
Color	Red, brown, white, black,etc.
Initial expansion temperature	199ºC
Main expansion temperature	347ºC
Linear expansion ratio	≥3 times,5-10times,10-20times,20-30times
Function	When on fire, the rapid expansion, closed doors and windows crack, prevent smoke and heat channeling into, to ensure personal safety,Sound insulation
Application	Fire-proof door, wooden door,community security door, heating furnace, heat sink, building pipe wells etc.

Application
Rebates in timber door leafs or door frames.
Use on single and double action leaf doors.
Use on latched and unlatched doors.
New build and retro-fit applications.
Product features
30 and 60 minute systems available. Provides fire, smoke and acoustic resistance. Supplied with a self-adhesive backer for ease of application. Identification on each product ensures full traceability. Available in a range of colours. Installation instructions
Select the appropriate strip using the door test evidence, which will identify the size intumescent strip required. The seal needs to be located centrally in either the door leaf or frame. Rout a groove suitable for the size of intumescent strip selected. Clean the rebate to remove any dust. Remove the self-adhesive backing liner from the product and push fit into the routed groove. To achieve excellent adhesion strips must be applied to clean, dry surfaces at temperatures between +5°C and +40°C.
Delivery and packing:
1. Express DHL,Fedex, UPS,TNT etc
2. By air
3. By sea
The delivery time usually 7-15 workdays, it depands on your quantity.
Packing: 150pcs/carton, 175pcs/carton
Can customize the packing according to the customer`s requirements
