Standalone Photoelectric Smoke Alarm Sensor

Product Description

Enhance fire safety with our Standalone Photoelectric Smoke Alarm Sensor. This sensor boasts high sensitivity and easy installation, making it ideal for use in schools, factories, and more. Trust Hangzhou Xinjian Electronic Co., Ltd. for secure smoke detection.
Product Description
Product Description The independent photoelectric smoke detector from Hangzhou Xinjian Electronic Co., Ltd. is a high-performance sensor designed with a special structure. It utilizes proprietary chips from well-known manufacturers and photoelectric sensing components. The automatic SMT process production ensures high sensitivity, good stability, and low energy consumption. This smoke detector is not only beautiful and durable but also easy to install.
Features: High-performance photoelectric sensor Special structure design Utilizes proprietary chips Automatic SMT process production High sensitivity Good stability Low energy consumption Beautiful and durable Easy to install Applications: Suitable for fire detection and alarm in schools, factories, shopping malls, warehouses, homes, and other places.

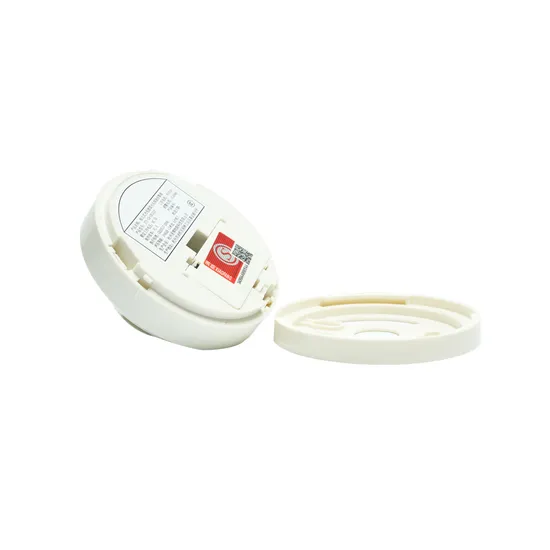

Detailed Photos Product Parameters Basic Parameter:

Model number	JTY-GD-CB1310
Operating voltage	DC 3V (2 pcs 1.5V batteries )
Work current	≤10uA
Alarm currant	≤200mA
Battery	No. 5 Mercury-free batteries 1500mAh/1.5V
Work temperature	-10---+50
Work humidity	≤95%RH(40±2)
Smoke alarm	Audible and visual alarm
Alarm Sound Level	80 dB (3 meters distance)
Battery low voltage alarm	Audible and visual alarm
Detection area	≤80 square meter
Material	Fire-proof plastic
Installation	Ceiling mounted
Dimension	Φ105*61mm
Weight	162g (with battery)

Product Dimensions:
Protection Area Detector Radius

As per installation environment	Refer to table for details

Hangzhou Xinjian Electronic Co., Ltd. presents the Standalone Photoelectric Smoke Alarm Sensor, designed for efficient fire detection in various settings. This sensor is ideal for providing early warning of smoke and potential fires, ensuring the safety of your home or workplace. With its reliable photoelectric technology, this smoke alarm offers quick response times and minimal false alarms. Protect your loved ones and property with this high-quality smoke alarm sensor from Hangzhou Xinjian Electronic Co., Ltd.

			Protection area A and protection radius R of a detector alarm
Types of fire detection alarms	Ground area S(square meter)	Room height H(m)	Roof slope α
			α≤15°		15°<α≤30°		α>30°
			A	R	A	R	A	R
			square meter	m	square meter	m	square meter	m
Smoke detection alarm	S≤80	H>12	80	6.7	80	7.2	80	8.0
	S>80	6<H≤12	80	6.7	100	8.0	120	9.9
		H≤6	60	5.8	80	7.2	100	9.0

Application Scenarios Matters Need Attention
Welcome to Hangzhou Xinjian Electronic Co., Ltd. This product is meticulously designed to deliver peak performance in a variety of settings. However, it is crucial to note that the product is not suitable for installation and operation under the following conditions:
Places with smoke accumulation under normal circumstances. Areas with elevated levels of dust, water fog, steam, oil fog, and other pollutants. Locations with relative humidity surpassing 95%. Environments with ventilation speeds exceeding 5m/s. To ensure a dependable and effective user experience, it is imperative to utilize the product in appropriate conditions to optimize its functionality.
Hangzhou Xinjian Electronic Co., Ltd. Product: Detection Alarm Maintenance: The detection alarm should be cleaned and maintained at least once every 12 months after installation to ensure optimal performance by keeping the base and maze free from dust and debris.
Transportation and Storage: Follow GB/T 15464-1995 for transportation and storage guidelines. Ensure the original packaging and seal remain intact to prevent damage during transportation and storage. Avoid exposing the product to drastic changes in ambient temperature. Packing Instructions: Packaging: 50 pieces Contents: 1 detector alarm, 2 expansion tubes, 2 self-tapping screws, 1 bag of desiccant, 1 manual, 1 certificate, 1 bag Installation Instructions Installation Instructions for Detection Alarm Base Installation: Drill two mounting holes 58mm apart from the ceiling, drive into the expansion tube, and then fix the base A and B of the alarm with self-tapping screws (see Figure 3). The expansion tube and self-tapping screws come with the packaging. Battery Installation: Open the battery cover of the detection alarm, and install the battery according to the positive and negative poles marked in the battery box (see Figure 4). After the battery is installed, press and hold the self-test button of the detector and observe whether the alarm emits an audible and visual alarm. If the alarm is abnormal, check whether the battery is installed correctly. Installation of Detector and Base: After the detector and base are aligned, turn the detector clockwise and observe the line alignment between the detector and base, that is, the installation is complete. Company Name: Hangzhou Xinjian Electronic Co., Ltd.
