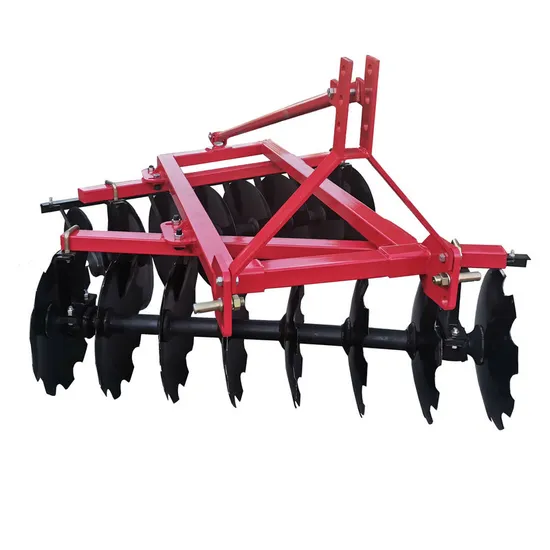

Full Suspension Medium Type Disc Harrow with CE
Basic Info.
Model NO.
1BJX-1.8
Application Field
Agriculture
Farming Policy
Mountain Machinery
Power Source
Tractor
Operation
Arable Machinery, Movable Operation
Traction Type
Hanging
Drive Type
Chain Drive
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Color
Red
Warranty
1year
Product Name
Full Suspension Disc Harrow
Working Width
1800mm
Working Depth
140mm
Weight
380kg
Matched Power
40HP
Transport Package
Iron Frame Net Box
Specification
ECU, CE
Trademark
YCHS
Origin
China
Production Capacity
1000sets/Year
Product Description
Disc harrow is mainly applicable to clean the crop residue before tillage, break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land.It can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil , the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.
Advantages: It is a mounted medium disc harrow for 30-80hp tractor . Notched disc blade of this tractor offset disc harrow in front, and flat plough disc in rear. Fit the scraper for each disc blade to clean the objects. The working depth can be adjusted freely
| Model | unit | 1BJX-1.6 | 1BJX-1.8 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 |
| Working width | mm | 1600 | 1800 | 2000 | 2200 | 2400 | 2500 |
| Working depth | mm | 140 | |||||
| Q'ty of disc | 14 | 16 | 18 | 20 | 22 | 24 | |
| Total weight | kg | 350 | 380 | 420 | 470 | 540 | 650 |
| Matched power | hp | 30 | 40 | 50 | 60 | 70 | 80 |
| Linkage | Three point suspension I type | Three-point suspension II type | |||||
