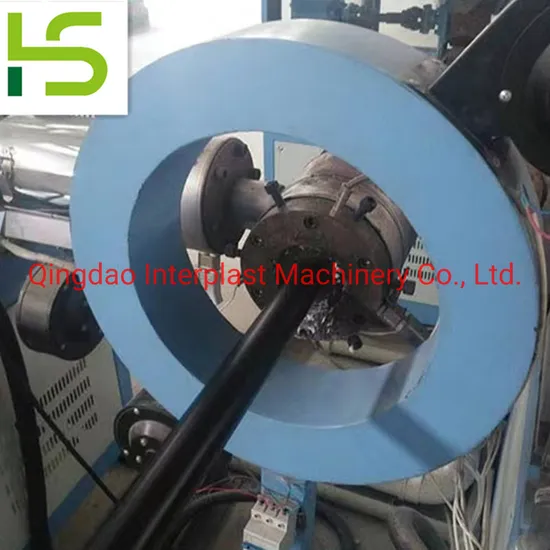

Air Conditioner Tube/PE Foam Pipe/Foaming Insulation Pipe Extruder Machine
| US$30,000.00-300,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ITPI-426
Type
Pipe Extruder
Plastic Processed
PE
Product Type
Pipe Extruder
Feeding Mode
One Feed
Assembly Structure
Integral Type Extruder
Screw
Single-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Don′t Exhaust
Automation
Automatic
Computerized
Computerized
Transport Package
Wooden Box
Specification
20-426MM
Trademark
Interplast Machinery
Origin
Qingdao
HS Code
84772090
Production Capacity
3 Sets Per Month
Product Description
Air conditioner tube/PE foam pipe/foaming insulation pipe extruder machineIsolated heat layer and anti-corrosion layer are wrapped on plasti pipe at the same time, continuous production, high efficiency and low cost;
Feature: Inner layer ppr/pe pipe, middle layer PE foam, outer layer pe jacket;
In line complete automatic hydraulic deviation revising machine, high precision, stable and reliable
Multi-roller pressing transmission to convey plastic pipe stability;
Production range:20-426mm.
Application:air conditioner tube,water supply and water drainage tube;
Following is Sprial Jacket Insulation Pipe for steel anticorrosion and insulation (3-6mm thickness)
Following is Straight/Plain HDPE Jacket Insulation Pipe Application
Parameters:
| Extruder | Haul-off machine | Die | Pipe range |
| SJ-90 | SJGF-400-4 claws | Φ110-Φ250 | Φ75-Φ400 |
| SJ-120 | SJGF-800-6 laws | Φ420 | Φ400-Φ760 |
| SJ150 | SJGF-1500-8 claws | Φ760 | Φ600-Φ1400 |
Foaming and Insulation Process for above
The foam platform has two different type: Non-bracket type, with-bracket type(need spacer)
Foam machine adopt high pressure foaming machine; Injection high efficient.
