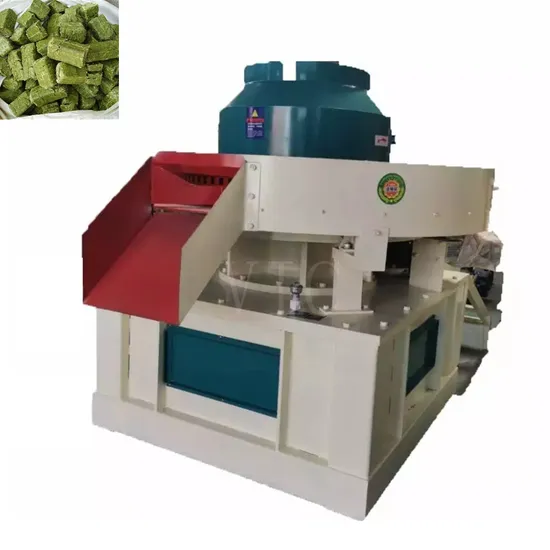

Full automatic wheat straw biomass briquette making forage hay grass solid waste coal block forming feed processing cube size alfalfa pellet press machine

Product Description

Full automatic wheat straw biomass briquette making forage hay grass solid waste coal block forming feed processing cube size alfalfa pellet press machine
Product Description
Introduction:
This cube size alfalfa pellet press machine is used for making cube biomass briquette from the sawdust, straw, hulls, etc.
(1) Multi-function design: Can extrude pellets or briquette, briquette length can be 50-100mm adjustment. Pellet diameter can be 4-12mm, briquette cube diameter can be 20-50mm.
(2) Output forming steady: Mechanical ramjet design, used high temperature high pressure RAM principle to adjust pressure angel, make material output without block;
(3) Long machine life time: Use alloy steel, vacuum firing craft, improve die life time;
(4) High capacity: Can operate 24 hours continuously;
(5)High density: Adopt mechanical RAM design, forming principle is high temperature, high pressure, high frequency, make high density, between 1.0-1.3 g/cm3.
(6) Easy operation: High automatic degree, little labor force; The whole machine is matched feeder and output conveyor, and control box;
(7) Proper for a lot of material: All kinds of straws, grain husk, peanut hull, cotton straw, sawdust, branch, life waste and so on.
(8)Length of Raw Materials should be below 50mm, if not, you need a crusher.
(9)Moisture Content of Raw materials should be below 25%, If much larger, drying by the sun or drier first please.
Main date about the cube size alfalfa pellet press machine

Model	9CK-120	9CK-160	9CK-250H	9CK-400
Capacity(T/h)	0.9-1.5	1.3-1.6	1.6-2.5	3--4
Motor Power (kw)	45	55	75	110
Size of products (mm)	30*30*50-100
Size (mm)	2700*1400*1600	2900*1450*1700	3020*1600*1900	3500*1700*2200
Weight (kg)	3200	3500	4300	4500

More pictures and details about the alfalfa cube machine:
9CK-120 alfalfa cube machine
9CK-250 Cube size alfalfa pellet press machine
9CK-400 grass cube briquette pressing machine
Detailed Photos
The transmission system is upgraded to a self-lubricating reducer transmission, replacing the
previous V-belt pulley transmission, without slipping and the transmission efficiency is increased by 6%
Press roller system with automatic lubrication for smooth operation and long life
Automatic lubrication system to extend bearing life
The automatic control system with star-delta starting reduces the starting current to
protect the motor and reduce the impact on other equipment in the line
(Button language can be customized)
Automtic feeding belt conveyor with variable frequency speed regulation and discharge belt conveyor
Spare parts
Different size mould can be customized
Pressing wheel
Final product alfalfa cube simple processed by the 9CK-250 alfalfa cube machine
Workshop Corner
Other new type Cube size alfalfa pellet press machine
