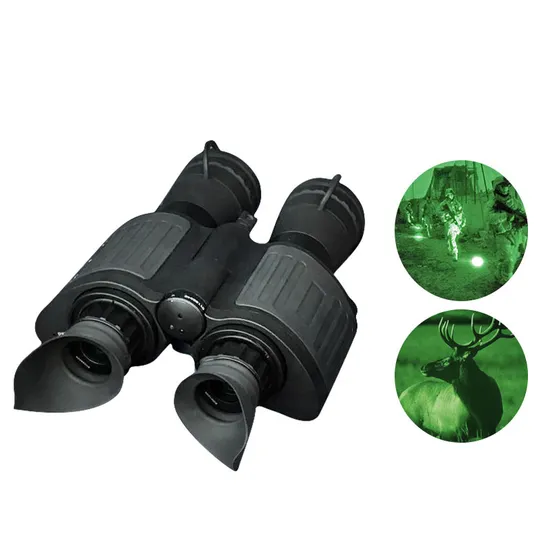

Military Gen 3 Waterproof Optical Night Vision Binocular Telescope
Basic Info.
Model NO.
DA-NVBF telescope & binoculars
Type
Binocular
Magnification
5X
Usage
Night Vision
Structure
Night Vision Telescope
Lens Type
Zoom Lens
Lens
Customizable
Dimensions
226X158X60mm
Diopter Adjustment
-5 to +5
Fov, Deg
20
Resolution
36-40lp/mm
Power Supply
2X3VCR123A Type Battery
Range of Focus
20 M to Infinity
Oberservation Distance
200-300m
Color
Black
Transport Package
Safety Box
Specification
226x158x60mm
Trademark
DA
Origin
China
Production Capacity
5000 Piece/Month
Product Description
Binocular telescope night vision have been used for hundreds of years to help people see things from afar. In past times this was essential to prepare for battle on land or at sea and to make every hunt more successful, whether for pleasure or necessity. Binoculars can play a part at sea and in hunting, perhaps even in watching sports.Features
Packaging & Shipping
Applications
Product Parameters
| Product | Night vision binocular |
| Model | DA NVB |
| Magnification, x | 5 |
| Field of view, deg | 20° |
| Len system | 86mmF/1.2 |
| Interpupillary distance, mm | 57-72 |
| Focus range, m/in | 8.0/8.8" to infinity m/in |
| Eye relief distance, mm | 15 |
| Diopter setting, D | +5,-5 |
| Overall dimensions, mm | 225x150x60 |
| Weight w/out headgear, g/oz | 1600/56.44 |
| Power supply | 2CR123 BATTERIES,3V |
| Estimated battery life w/out IR, 73 °F, hour | Up to 20 |
| GEN II Image Intensifier Tubes | |
| Classification | OMNI II |
| Photocathode type | 18mm S-25 |
| Photocathode sensitivity, typical, uA/lm | ≥550 |
| Resolution, typical, Ip/mm | 48-58/57-64/60-72 |
| Luminous gain, typical, fl/fcd | 19000-25000 |
| Signal-to-noise ratio, typical | 20:1 or better |
| FOM, typical | 1150-1350 |
| Tube reliability standard, hour | 10000 |
| Environment Data | |
| Operating temperature, °C/°F | -40°to +50°/ -40°to +122° |
| Storage temperature, °C/°F | 0°to +50°/ 32°to +122° |
| Immersion, hour | 2 meter for 1.0 (Optional) |
| Humidity , % | Up to 98% |
