1600mm Diamond segment: stone cutting segment

Product Description

1600mm Diamond segment: stone cutting segment
Why choose us
Established in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time

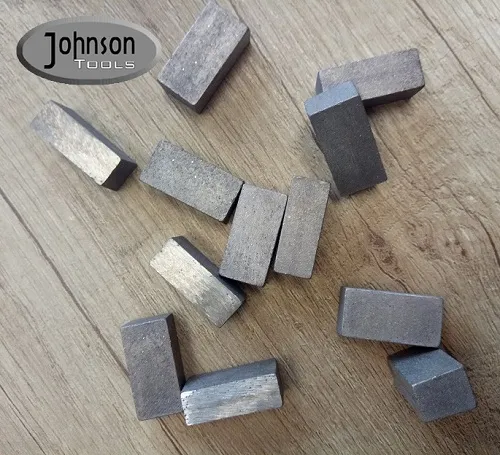

1.Description of 1600mm Diamond segment: stone cutting segment Diamond segments are parts of diamond tools. 1. Segments be brazed on: 1600mm diamond saw blades and saw blanks, which are especially for stone 2. Application: Different formula for all kinds of stone (such as marble, granite, limestone, basalt stone, sand stone, grit stone, etc.)
2.Features of 1600mm Diamond segment: stone cutting segment 1. High percent of bond materials
2. High grade of diamonds
3. Various experience with hundreds of formula against different stones
4. Competitive price and stable quality
5. Strict quality control before send out
6. Our products last long life and give a sharp cut
We can satisfy different companies, high-, middle- and low-end markets.
Shapes and performance also can be customized based on customers' requirements
7. Advantage: Good cutting performance and long life.
3.Specification information of 1600mm Diamond segment: stone cutting segment
1. Types available: Normal type, Sandwich type, Ladder type, Turbo, etc.
2. Be well exported to UK, Yemen, PK, Iran, India, Egypt, Brazil, Mexico, etc.
3. Diameter: 1600mm
4. Diamond segment size: 24x9/10x10/12mm
5. Shape: Rectangle
6. Delivery time: 5-15days
7. Segment teeth: 108nos

Segment type	Segment size	Segment teeth
OD1600mm diamond segments	24x9/10x10/12mm	108

Other size we could do:

Item	Be brazed on	Seg.L /mm	Seg.W /mm	Seg.H /mm
SCB-350	OD350mm diamond saw blade	40	3.2	10/12
SCB-400	OD400mm diamond saw blade	40	3.4	10/12
SCB-450	OD450mm diamond saw blade	40	3.6	10/12
SCB-500	OD500mm diamond saw blade	40	3.8	10/12
SCB-600	OD600mm diamond saw blade	40	4.2	10/12
SCB-700	OD700mm diamond saw blade	40	5	10/12
SCB-800	OD800mm diamond saw blade	40	6	10/12
SCB-900	OD900mm diamond saw blade	24	6.5	10/12/13/14/15
SCB-1000	OD1000mm diamond saw blade	24	7	10/12/13/14/15
SCB-1200	OD1200mm diamond saw blade	24	7	10/12/13/14/15
SCB-1300	OD1300mm diamond saw blade	24	7	10/12/13/14/15
SCB-1600	OD1600mm diamond saw blade	24	9	10/12/13/14/15
SCB-1800	OD1800mm diamond saw blade	24	9	10/12/13/14/15
SCB-2000	OD2000mm diamond saw blade	24	10	10/12/13/14/15
SCB-2200	OD2200mm diamond saw blade	24	10	10/12/13/14/15
SCB-2300	OD2300mm diamond saw blade	24	10.5	10/12/13/14/15
SCB-2500	OD2500mm diamond saw blade	24	12	10/12/13/14/15
SCB-3000	OD3000mm diamond saw blade	24	13	10/12/13/14/15
SCB-3500	OD3500mm diamond saw blade	24	13	10/12/13/14/15

4.Packing and shipping of 1600mm Diamond segment: stone cutting segment
Each diamond segments are packed in plastic bags or white boxes, then according to the gross weight, usually around 15-20kg per carton.
Shipping date: If we have mould in our stock, normally shipment within 5days. If not, usually around 7-15days
Delivery way: By sea, by air, by courier, by track, etc.
5.Payment term
T/T, Irrevocable L/C at sight, Paypal, Western Union, Credit Card, etc
6.Our Technology
We are processing advanced production equipment,modern checking system,strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond tools is our aim.
7. Our Related Products:
8. FAQ: Q: How to place order to your company?
1. Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2. Proforma Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3. Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4. Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5. After-Sale Service: Track the goods, learn the products' performance.
6. Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
