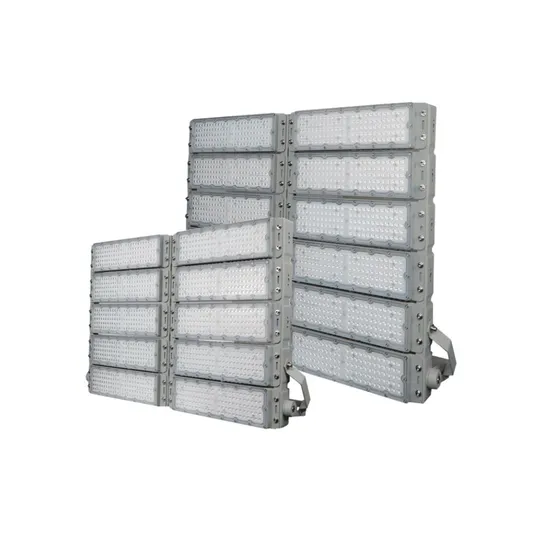

1000W LED Flood Light 200W 300W 400W 500W 600W Sport Tennis Court LED Arena Lights Stadium LED Light Outdoor

Product Description

1000w led flood light 200W 300W 400W 500W 600W Sport Tennis Court Led arena lights stadium led light outdoor
Advantages of LED stadium sports light
The best adjustable flood light for project lighting, sport field, high masts, warehouse, display rack, tunnel, football field etc. The meanwell/Inventronics/Peony Brand drive, very good on anti-surge, stable performance, 5 years warranty. Use the new generation Lumileds 3030SMD as Light Source, with the features of high brightness, low light decay, long lifespan. Provide a variety of beam angle options for different application scenarios. All sets of IES files support, Dialux program support. Waterproof IP66, outdoor use freely. Anti-glare cover and explosion-proof net can be added.
Datesheet:

Model	PL-SD-056
Power	100W	200W	300W	400W	500W
Dimension	403X183X146mm	403X287X146mm	403X391X146mm	403X495X146mm	403X599X146mm
Luminous Flux	120-130 lm/w
LED Source	120PCS 3030	240PCS 3030	360PCS 3030	480PCS 3030	600PCS 3030
Input Voltage	AC100~277V
Frequency Range	50~60Hz
Total Harmonic Distortion	<20% (Typical : 10%)
Color Temperature	2700-6500K
Color Rendering Index	CRI>70
IP/IK Rating	IP65/IK08
Beam Angle	15°/30°/60°/90°/70x140°
Housing Color	Silver
Working Life	>50,000 hours
Warranty	5 years
Working Environment	-30ºC~+50ºC, 10%~90% RH
Body & Shade Material	Aluminum housing & Annular lens
Where Can Use	Applicable for Building external wall,square,project lighting, sport field, high masts, warehouse, display rack, tunnel, football field etc.

Model	PL-SD-056
Power	600W	800W	1000W	1200W
Dimension	403X703X146mm	778X495X146mm	778X599X146mm	778X703X146mm
Luminous Flux	120-130 lm/w
LED Source	720PCS 3030	960PCS 3030	1200PCS 3030	1440PCS 3030
Input Voltage	AC100~277V
Frequency Range	50~60Hz
Total Harmonic Distortion	<20% (Typical : 10%)
Color Temperature	2700-6500K
Color Rendering Index	CRI>70
IP/IK Rating	IP65/IK08
Beam Angle	15°/30°/60°/90°/70x140°
Housing Color	Silver
Working Life	>50,000 hours
Warranty	5 years
Working Environment	-30ºC~+50ºC, 10%~90% RH
Body & Shade Material	Aluminum housing & Annular lens
Where Can Use	Applicable for Building external wall,square,project lighting, sport field, high masts, warehouse, display rack, tunnel, football field etc.

Packaging:

Item Model	Carton Size(mm)	G.W(KG)	QTY(PCS)
PL-SD-056-100W	415X220X150	3.50	1
PL-SD-056-200W	415X220X150	5.50	1
PL-SD-056-300W	415X320X150	7.00	1
PL-SD-056-400W	415X425X150	8.50	1
PL-SD-056-500W	415X530X150	11.00	1
PL-SD-056-600W	415X635X150	13.50	1
PL-SD-056-800W	780X325X150	16.50	1
PL-SD-056-1000W	780X425X150	20.50	1
PL-SD-056-1200W	780X625X150	26.50	1

Precautions:
1, prior to installation or use, please read the instructions say;
2, when the lamp is working, do not touch;
3, when the lights do not work with water or a wet cloth to wipe lamp;
4. Consult require special installation technician or supplier;
5, artificial damage in the warranty period, free repair.
Maintenance:
1,The power must be cut off before maintaining.
2,Cleaning the glass of the product in regular time to ensure the good efficiency.
3,Cleaning the housing and radiator in regular time to ensure the good performance of heat sinking.
4,Can use the screwdriver open the cover and take out of the driver to change a new.And connection of the wires of AC driver please follow below: Brown to connect "L", Blue to connect "N", Yellow to connect "", And the red or white wires of DC connect the positive pole of driver, and the black wire connect the negative pole of driver. and don't mix the positive pole and negative pole.
5,Please take measures of lightning protection, and ensure the Input voltage which is stable.
6,Please put the lamp under the dry, ventilated and clean circumstance, and clean and maintain regularly.
7,Don't disassemble by yourself, avoid the electric shock as there is high voltage inside the lamp.
8 Don't upside down when installing or lighting the lamp
Please ask the qualified professional person for help. Warranty All products use constant current power supply ,and have 5 years warranty(According to your requirement).
Remark:The warranty on the base of right storing way,right installing way,right using way,right maintaining way.Any broken out of our rule,out of our warranty.During the warranty time,we can choose repairing,replacing parts or replacing the whole products according the detail information.And we'll charge the customers some material fee and labor cost if the product out of our warranty time.
Please read the instruction carefully before you use the product.We keep the right of final explanation for the instruction and the product.The product will keep updating continues.And sorry for the no notice for the updating.sure the Input voltage which is stable.
Precautions:
1, prior to installation or use, please read the instructions say;
2, when the lamp is working, do not touch;
3, when the lights do not work with water or a wet cloth to wipe lamp;
4. Consult require special installation technician or supplier;
5, artificial damage in the warranty period, free repair.
Maintenance:
1,The power must be cut off before maintaining.
2,Cleaning the glass of the product in regular time to ensure the good efficiency.
3,Cleaning the housing and radiator in regular time to ensure the good performance of heat sinking.
4,Can use the screwdriver open the cover and take out of the driver to change a new.And connection of the wires of AC driver please follow below: Brown to connect "L", Blue to connect "N", Yellow to connect "", And the red or white wires of DC connect the positive pole of driver, and the black wire connect the negative pole of driver. and don't mix the positive pole and negative pole.
5,Please take measures of lightning protection, and ensure the Input voltage which is stable.
6,Please put the lamp under the dry, ventilated and clean circumstance, and clean and maintain regularly.
7,Don't disassemble by yourself, avoid the electric shock as there is high voltage inside the lamp.
8 Don't upside down when installing or lighting the lamp
Please ask the qualified professional person for help. Warranty All products use constant current power supply ,and have 5 years warranty(According to your requirement).
Remark:The warranty on the base of right storing way,right installing way,right using way,right maintaining way.Any broken out of our rule,out of our warranty.During the warranty time,we can choose repairing,replacing parts or replacing the whole products according the detail information.And we'll charge the customers some material fee and labor cost if the product out of our warranty time.
Please read the instruction carefully before you use the product.We keep the right of final explanation for the instruction and the product.The product will keep updating continues.And sorry for the no notice for the updating.sure the Input voltage which is stable.
FAQ
Q: Whether the LED lights really have 50,000 hours lifespan?
A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from
in lab,actual lifespan is only <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.
Q: For same power,why different suppliers with different brightness?
A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip
and same brightness version,the brightness will be slight difference.But please make clear the brightness difference
between LEDs and lamp fixture.
Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized
in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,
while a cooler (higher color temperature) light is used to enhance concentration in offices.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
