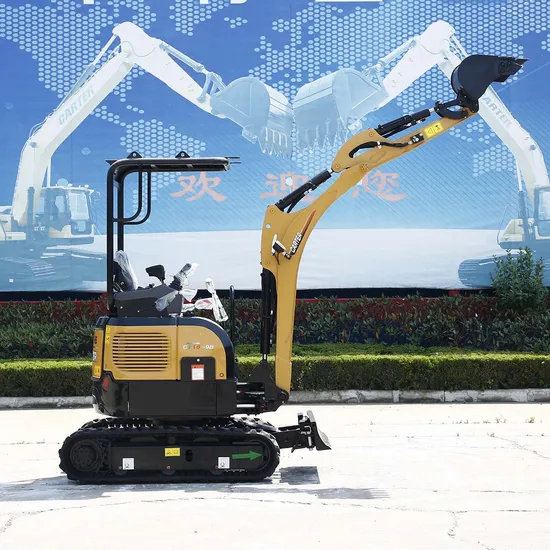

Eaton Travel System Mini Excavator: Versatile Crawler Design for Efficiency
| US$11,600.00-14,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CT16-9BP
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.028-0.095m3
Size
Mini
Certification
CE, ISO9001: 2000
Condition
New
Counter Weight Ground Clearance
507mm
Grade Ability
58%
Swing Speed
8.8 Rpm
Tail Swing Radius
660mm
Track Gauge(Extension1090mm)
740mm
Track Shoe Width
230mm
Revolving Frame Width
1000mm
Operating Weight
1700kg
Ground Clearance
192mm
Track Width(Extension1320mm)
970mm
Transport Package
Load 4 Units in One 20gp Container
Specification
MINI
Trademark
CARTER
Origin
Shandong, China
HS Code
8429521200
Production Capacity
3000PCS/Year
Product Description
SPECIFICATIONS:
Boom length: 1829mm
Arm length:950mm
Max.digging depth: 2033mm
Max.digging height:3281mm
Max.digging distance:3941mm
Max.digging radius at ground level:3878mm
Max.dumping height: 2393mm
Max.vertical digging depth: 1605mm
Max.swing radius of work equipment: 1625mm
| Travel System | ||||||||||||||
| Model | Yanmar 3TNV70 | Travel motors | Eaton, USA | |||||||||||
| Type | Direct injection, water cooled, natural intake | Support roller quantities | 2×3 | |||||||||||
| Carrier roller quantities | 2×1 | |||||||||||||
| No. of cylinder | 3 | Travel shoes | No | |||||||||||
| Bore and stroke | 70x74(mm) | Travel speed | 2.7/5.0(km/h) | |||||||||||
| Displacement | 0.854L | Drawbar pulling force | 11.7kN | |||||||||||
| Power output | 10kw/2200rpm | Gradeability | 58%(300) | |||||||||||
| Max. torque | 50N.m/2000rpm | Ground clearance | 160mm | |||||||||||
| Hydraulic System | Cab & Electrical System | |||||||||||||
| Pump | CASAPPA, Italy | Cab | All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat, Front Window can be opened and slided; adjustable Seat | |||||||||||
| Type | Axial-piston pump+gear pump | |||||||||||||
| Max. discharge flow | 2x20+15.1(L/min) | |||||||||||||
| Max. discharge pressure | ||||||||||||||
| Boom, arm and bucket | 17 MPa | Voltage | 12V | |||||||||||
| Travel circuit | 12 MPa | Batteries | 1X12V | |||||||||||
| Swing circuit | 9 MPa | Battery capacity | 60Ah | |||||||||||
| Control circuit | 3 MPa | Boom, Arm & Bucket | ||||||||||||
| Pilot control pump | Gear type | Boom cylinder | Φ60xΦ35xS440-L770 | |||||||||||
| Main control valves | Hydro Control, Italy | Arm cylinder | Φ60xΦ35xS330-L600 | |||||||||||
| Oil cooler | Air cooled type | Bucket cylinder | Φ55xΦ30xS300-L560 | |||||||||||
| Swing System | Refilling Capacity & lubrication | |||||||||||||
| Swing motor | Eaton, USA | Fuel tank | 28L | |||||||||||
| Swing motor type | Axial-piston motor | Cooling system | 8L | |||||||||||
| Brake | No | Engine oil | 4.4L | |||||||||||
| Parking brake | No | Hydraulic oil tank | 17.5L Tank Oil Level | |||||||||||
| Swing speed | 8.8 r/min | 24L Hydraulic System | ||||||||||||
| Bucket | ||||||||||||||
| Type | Backhoe bucket | |||||||||||||
| Bucket capacity | 0.04m3 (SAE) | Bucket Capacity scope | 0.028-0.095m3 | |||||||||||
| Number of bucket teeth | 3 or 4 | Bucket width | 450 mm | |||||||||||
| Working ranges | ||||||||||||||
| Boom length | 1829m | Arm length | 950mm | |||||||||||
| A | Max. digging height | 3281mm | B | Max. dumping height | 2393mm | |||||||||
| C | Max. digging depth | 2033mm | D | Max. vertical digging depth | 1605mm | |||||||||
| E | Max. digging distance | 3941mm | F | Max. digging radius at ground level | 3878mm | |||||||||
| G | Min swing radius of work equipment | 1625mm | ||||||||||||
| A | Bucket digging force | 11.2 KN | B | Arm digging force | 9.1 KN | |||||||||
| Overall Dimensions | ||||||||||||||
| A | Overall length | 3694mm | I | Track grounding length | 1210mm | |||||||||
| B | Ground contact length(Transportation) | 2366mm | J | Track length | 1588mm | |||||||||
| C | Overall height(to top of boom) | 1157mm | K | Track gauge(extension 1090mm) | 760mm | |||||||||
| D | Overall width | 1000mm | L | Track width(extension 1320mm) | 990mm | |||||||||
| E | Overall height(to top of cab) | 2411mm | M | Track Shoe width | 230mm | |||||||||
| F | Counter weight ground clearance | 207mm | O | Bonnet height | 1222mm | |||||||||
| G | Min. Ground clearance | 160mm | P | Revolving frame width | 1000mm | |||||||||
| H | Tail swing radius | 660mm | Q | Distance from swing center to tail | 665mm | |||||||||
| Operating Weight and Ground Pressure | ||||||||||||||
| Operating weight | 1700kg(with canopy) | Ground pressure | 28 KP | |||||||||||
