CNC Mechanical Lathes Mini Metal CNC Lathe Machine for Sale with Szgh Control

Product Description

Product Overview

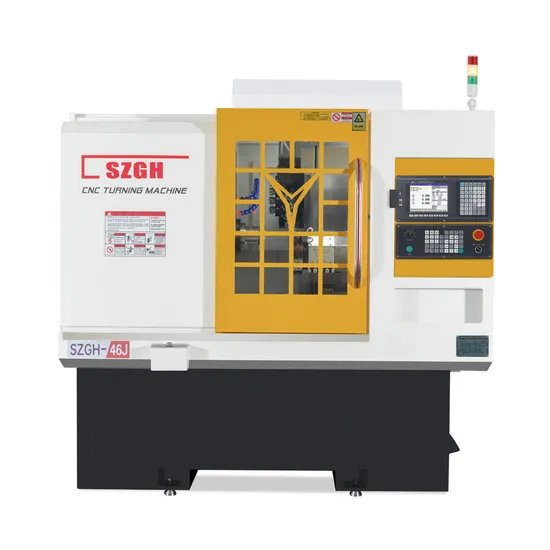

SZGH-46J CNC lathe is suitable for batch production of copper, iron, aluminum and stainless steel bars within 45mm, and batch production of open-type forged parts with automatic feeding of pellets within 60mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 350mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 4mm, precision tolerance within ±0.0075mm, and smoothness within 1.6. It is widely used in the processing of large parts with high precision and rigidity. Through careful design and matching, the performance of each accessory can be fully utilized to achieve the best cost-effective ratio.
Adopting SZGH high precision cnc control package ,make the process more highly efficient!
Standard Configuration

Technical parameter item		Unit	Standard value	Max value
Processing capacity	Max. diameter of bar bore	mm	45	-
	Max. particle diameter (disk type)	mm	400	420
	Max. length of workpiece	mm	380	400
	Cutting amount of stainless steel on one side	mm	3	4.5
	Machining accuracy of the workpiece	mm	±0.0075	-
	Surface roughness	Ra	1.6	1.6
	the height of center tool holder	mm	50	-
	Turning Diameter	mm	420	-
	Square Knife Specifications	mm	20*20	-
Travels	X-axis effective travel	mm	1000	-
	Z-axis effective travel	mm	400	-
Y-axis	Y-axis mode	-	side 4+ end 4 power head	-
	Y-axis travel	mm	220	-
	Y-axis power head clamping type	-	ER225	-
	Y-axis maximum speed	rpm	2500	4000
	Y-axis rapid traverse speed	m/min	15	-
	Maximum drill diameter	mm	16	-
Feed	X-axis rapid traverse	m/min	25	30
	Z-axis rapid traverse	m/min	25	30
	X-axis servo-motor power	kW	1.5	-
	Z-axis servo-motor power	kW	1.5
Spindle	Max.Spindle Speed	rpm	3500	4000
	Spindle Motor Power	kW	5.5kw servo	7.5kw servo
	Spindle nose taper	-	A2-5	-
	Support hydraulic chuck size	inch	8	10
Dimensions	Dimensions	mm	2100*1500*1900	-
	Total Weight	kg	2800	-

Machine tool specifications and component items		Specification	Standard	Optional
Part Specifications	Screw	32mm	Taiwan ball grinding precision grade	-
	Guide rail	30mm	Taiwan H-class linear guide rail	-
	Bearing	-	SZGH high rigidity barrel spindle	-
	Spindle motor	5.5kW	Server host	-
	Feed servo	1.5kW	SZGH High Speed Servo	-
	CNC Control	Ac8F-G	SZGH high-speed CNC system	-
Machine specifications	Bed Type	45°	Slant Bed	-
	Base form	-	Heavy-duty anti-deformation patented base	-
	Clamping method	-	hydraulic clamping	-

The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.

*Can mount right-setting or back-setting chip conveyor, strong chip conveying capacity.
*Anti-deformation patented heavy-duty base, heavy enough to support fast. Heavy enough to support bar and large parts, anti-vibration, improve precision and smoothness.
*The key components adopt high-quality wear-resistant configurations such as Taiwan, and the sleeve and spindle are all dynamically balanced. *Bed adopts flat bed, slide board adopt 30°slant design, high rigidity, good machining flexibility.
*Super compact design, big inside space, modern appearance.
*Base adopt multi-layer strengthening rib, ensuring bed's strength and stability.
*Adopt high precision integral spindle unit, spindle motor adopt high-performance servo motor, big output torque, high-speed wide adjustment range.
*Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkage, high transmission rigidity, can realize μ class precise turning.
*Adopt SZGH electric control package to make electromechanical cooperation play the best efficiency.
CNC CONTROLLER SYSTEM
1) 800x600 8.4 inchs real color LCD displayer.
2) Support PLC and macro function, and automatic tool exchange function.
3) 128MB Memory , 100Mb user store room.
4) 5MHz Pulse Output Frequency, Max speed is 300m/min, feeding speed is 150m/min.
5) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing.
6) High anti-jamming switch power(220VAC -> 24V&5VDC).
7) Built-in many plc programs,which can be edited freely.
8) With USB interface,it supports file operation in flash disk,system configuration and software upgrade.
9) Display in chinese or english,which can be selected by parameter.
10) Analog voltage output of 0~10V in two channels,support double spindles.
11) 32 bits high performance, low power consumption industrial grade ARM11 microprocessor.
12) I/Os : 56*32, 40*32 I/Os can be edited freely.
13) cutter offset : C.
14) English menu, program and interface, full screen edition.


FAQ
1. Who are we? We are based in Guangdong, which provides CNC total solution package. Such as lathe machine, and milling machine, and matched sysytem,which has independent technical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
2. How can we guarantee the quality?
Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
3. Where is our factory located? How can I visit there?
Our factory is located in Henggang Street, Longgang District, Shenzhen City, Guangdong Province, China. You are warmly welcome to visit our factory.
4.What is the delivery time?
The full series of standard models are in stock. For a customized one, it depends.
5.What services can we provide?
1.Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,
Korean, Italian, and so on.

6.What is the warranty period?
After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

7.How can I choose the most suitable machines?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.

8.Does your cnc support booting logo exchange?
Yes, no problem.
