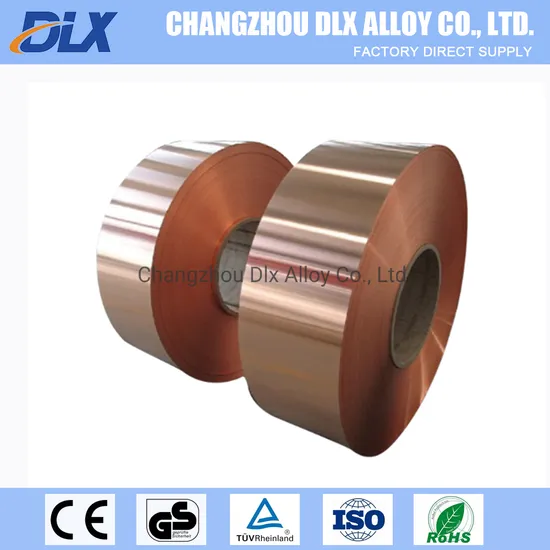

High Quality C17200 Cube2 Beryllium Bronze Strip Copper Rod/Foil Sheet

Product Description

Product Description C17200 / QBe2 / Beryllium Copper Alloy Foil Strip / tape in Coils Physical Properties Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980 °C
Note:
1). the units are based upon Metric.
2). the typical physical properties apply to age hardened products. Applications: 1). Electrical Industry: Electrical Switch and Relay Blades
2). Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors
3). Contact Bridges, Belleville Washers, Navigational Instruments
4). Clips Fasteners: Washers, Fasteners, Lock Washers
5). Retaining Rings, Roll Pins, Screws, Bolts Industrial: Pumps, Springs,
6). Electrochemical, Shafts, Non Sparking Safety Tools, Flexible Metal Hose,
7). Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems,
8). Diaphragms, Springs, Welding Equipment, Rolling Mill Parts,
9). Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment. More Products: More range of copper and copper alloys, in full series of shapes: Sheet, Rod, Pipe, Strips and Wire list as below:
C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)
CuCoNiBe (CuCo1Ni1Be, 2.1285, CW103C)
C15000,/150, C18000/180, C18150/181, C18200/182
CuZr, CuNi2CrSi, CuCr1Zr, CuCr

Product Name	0.08-2mm Thickness Alloy 25 Beryllium Copper strips
Material	Beryllium Copper Alloys
Composition	Be 1.86% Co+Ni 0.265% Fe 0.06% Co+Ni+Fe 0.325% Cu Balance
Shape	Roll//Strips/coils
UNS/CDA	UNS: C17200, CDA: 172
ASTM	B194
AMS	4530, 4532
RWMA	Class 4
Temper	A(TB00), 1/4H(TD01), 1/2H(TD02), H(TD04)

Detailed Photos

Certifications
Company Profile Our company Principle is " Quality first, Customer first".
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got Iso9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
1, We're able to design and develop the product what our customers require and meet their requirements through providing the appropriate engineering drawings or samples.
2, We can provide the products within a week after payment.
3, Wecan provide sample of the products customer need.
4, We always insist on "Quality first, Customer first" as our business philosophy.
Packaging & Shipping
FAQ Question: Are you a trading company or manufacturer?
Answer: We're manufacturer.
Question2: Could you help to design the product? Answer: Yes, we have excellent R&D team, OEM/ODM orders are all welcome. Question: Could you supply samples? Answer: Yes, wecould supply samples according to your requirement.
Question: could we visit your factory?
Answer: Sure, factory visit is warmly welcome.
