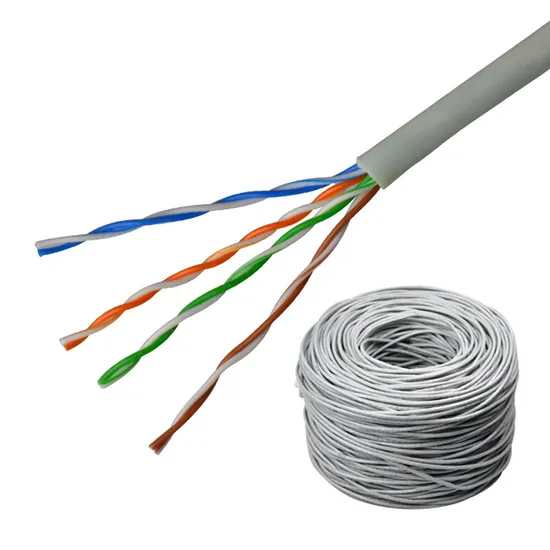

1000FT Cat5e Unshielded (UTP) PVC Jacket 0.50mm 24AWG Ethernet Cable

Product Description

U/UTP CAT 5E Twisted Pair Installation Cable
LAN CABLE
Construction
Conductor:			24 AWG Solid Bare Copper
Pairs:			4 Pairs
Insulation:			0.91 mm HDPE
Insulation Colors:			Blue-White/Blue,Orange-White/Orange
			Green-White/Green,Brown-White/Brown
Rip Cord:			Cotton
Out Jacket:			5.1±0.2 mm PE
Electrical Characteristics
Impedance			1 - 100MHz 100±15 Ohms
Insulation Resistance			>5000MΩ*KM
Dielectric strength			DC 2500V 2S
Max.Conductor DC Resistance 20ºC			9.5 Ohms/100m
Res. unbalance (%)			Max. 2.5
Pair to Ground Capacitance Unbalance			330 pF/100m
Transfer Impendance			Max 10 mOhms/m @100Mhz
Installation temp.			-30 - 50ºC
Operation temp.			-20 - 75ºC
Application
• Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 2nd Edition Class D channel standards.
• Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 5e component standards.
• Third party tested to Category 5e channel compliance.
• Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
• Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap.
• Color Availability: Additional cable colors available.
Performance Characteristics
Frequency	RL (Min.)	Insertion Loss(Max.)	Propagation Delay (Max.)	Delay Skew(Max.)	NEXT (Min.)	PSNEXT (Min.)	ELNEXT (Min.)	PSELNEXT (Min.)
MHz	dB	dB/100m	ns/100m	ns/100m	dB	dB	dB/100m	dB/100m
1	20.0	2.2	570.0	45.0	65.0	62.0	61.0	61.0
4	23.0	4.2	552.0	45.0	56.0	53.0	48.0	48.0
10	25.0	6.5	545.0	45.0	50.0	47.0	41.0	41.0
16	25.0	8.4	543.0	45.0	47.0	44.0	36.0	36.0
20	25.0	9.3	542.0	45.0	45.0	42.0	34.0	34.0
31.25	23.6	11.6	540.0	45.0	42.0	39.0	31.0	31.0
62.5	21.5	17.0	539.0	45.0	38.0	35.0	25.0	25.0
100	20.1	22.0	538.0	45.0	35.0	32.0	21.0	21.0
Note: The above transmission performance tor the 100M, 20±2ºC under the conditions tested.
Order Informations
Marking			U/UTP CAT 5E 4PR 24AWG PE XXX (or Per customer's request)
Inner Package			305m/Spool,305m/Reel (or Per customer's request)
Outer Package			Color Box, Pallet (or Per customer's request)
Delivery time			Normally 25 days after received the deposit.
