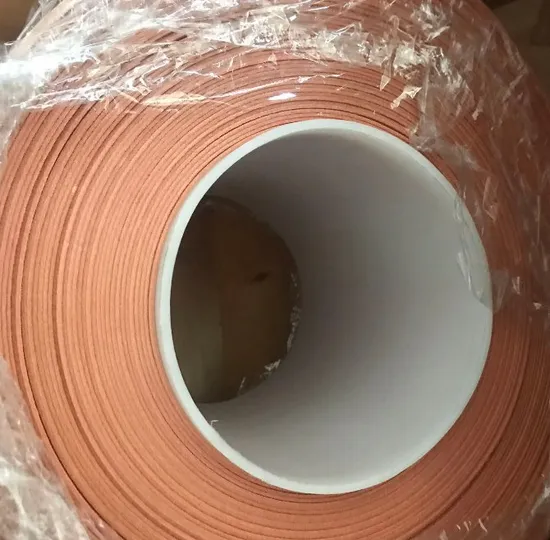

TMAXCN Brand Open Cell Copper Metal Foam Roll / Sheet Cu Foam

Product Description

Micro-Porous Cu Foam Copper Foam Sheet Apart from Aluminum, Copper is the most widely used material for making heat sinks, because properties of copper make it suitable for the purpose.Micro-porous copper foam is like an open cell structure, with an extraordinarily large number of interconnected pores distributed uniformly throughout the base copper material.
1. Copper foam has great function of conducting heat and electricity, which can be used as the electrode substrate of lithium ion battery or fuel cell or Nickel zinc battery and electric double layer capacitor electrode material.
2. The copper foam can be also used as Heat sink materials, heat absorption materials, chemical catalyst carrier, electromagnetic shielding materials, filtration materials, damping materials, battery electrode materials, deadening, high-grade decorative materials.

Materials	Copper Foam Sheet
Thicness	5 mm(0.03-6mm can be customized)
The aperture	1 mm
Through Hole Rate	>98%
Porosity	>98% 110 Pores per Inch(50-130PPI can be customized)
Purity	≥99.99% ,Sold in roll or sheet
Bulk density	0.1-0.8g/cm3
Diamension	80um*200mm*300mm, or customized as request
Mainly used for Lab Fuel Cell Research

Dimension (Thickness* Length*Width)

3mm*300mm*200mm	2mm*500mm*500mm	2mm*100mm*100mm
1.6mm*200mm*300mm	1.6mm*100mm*100mm	1.5mm*200mm*300mm
1.0mm*300mm*200mm	1mm*500mm*500mm	0.5mm*100mm*100mm
0.3mm*100mm*100mm	0.2mm*100mm*100mm	0.1mm* 100mm*100mm
80um*100mm*100mm	30um*100mm*100mm	The size can be customized

To customize various metal foam, please click the picture below for details:
