1.8X40m Small Active Lime Rotary Kiln Production Line Manufacturer

Product Description

1.8x40m Small Active Lime Rotary Kiln Production Line Manufacturer
1.Product Description of Small Limestone Rotary Kiln

Product Name	Small Limestone rotary kiln
Suitable for	Limestone, cement, bauxite, Kaolin, Iron Ore , ceramic ect.
Color	Customizable

Small limestone rotary kiln is the main equipment for lime,ceramisite, calcining cement clinker and it can be used widely for lime and cement industry,metallurgy industry, chemical industry, etc.The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc.
2. Features and Factory Pictures of Small Limestone Rotary Kiln
Rotary kiln for lime has the simple structure and reliable operation, at the same the production process of the rotary kiln can be controlled easily. Through the technical renovations, the rotary kiln claiming system equipment has adopted the advanced hydraulic thrust roller device,and the other national advanced technologies.
3.Size Information of Small Limestone Rotary Kiln

Specificatios Model (mm)	The size of the kiln			Yield (t/h)	Speed (r/min)	Electrical power (kw)	Weight (t)	Remarks
	Diameter (mm)	Length (mm)	Gradient (%)
φ1.4×33	1.4	33	3	0.9-1.3	0.39-3.96	18.5	47.5	----
φ1.6×36	1.6	36	4	1.2-1.9	0.26-2.63	22	52	----
φ1.8×45	1.8	45	4	1.9-2.4	0.16-1.62	30	78.2	----
φ1.9×39	1.9	39	4	1.65-3	0.29-2.93	30	77.59	----
φ2.0×40	2	40	3	2.5-4	0.23-2.26	37	119.1	----
φ2.2×45	2.2	45	3.5	3.4-5.4	0.21-2.44	45	128.3	----
φ2.5×40	2.5	40	3.5	9.0-10.5	0.44-2.44	55	149.61	----
φ2.5×50	2.5	50	3	6.25-7.4	0.62-1.86	55	187.37	----
φ2.5×54	2.5	54	3.5	6.9-8.5	0.48-1.45	55	196.29	----
φ2.7×42	2.7	42	3.5	10.0-11.0	0.10-1.52	55	198.5	----
φ2.8×44	2.8	44	3.5	12.5-13.5	0.437-2.18	55	201.58	Suspension preheater kiln
φ3.0×45	3	45	3.5	12.8-14.5	0.5-2.47	75	210.94	----
φ3.0×48	3	48	3.5	25.6-29.3	0.6-3.48	100	237	The kiln, kiln
φ3.0×60	3	60	3.5	12.3-14.1	0.3-2	100	310	----
φ3.2×50	3.2	50	4	40.5-42	0.6-3	125	278	The kiln, kiln

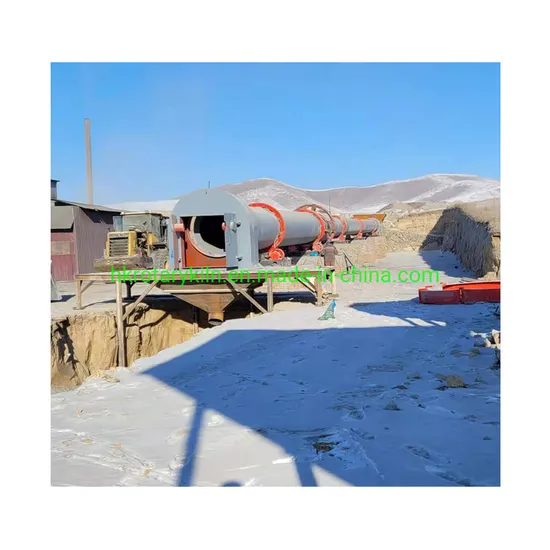

4. Working Sites of Small Limestone Rotary Kiln
5.Company Introduction

Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on, such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln, metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill,stone production line, mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperating with you!


6.FAQ

1. What is the minium order quantity?
One set.
2.How long is the warranty period?
One year. Wearing parts are excluded.
3. What is the after-service of your company?
We can provide the customers foudation drawing, installation service, work training as well as other service according to the
customer's requirements.
4.How long is the delivery time?
About 20 working days after we receive the payment.
5. What are the payment terms?
T/T, L/C are the best, it can be adjustable according to different situations.--------------------------------------------------------------------------------------
Kindly Note: 1. Please pay attention to the capacity. It's what you must take into consideration in choosing a suitable machine.
2. Please Inform us the follow figures:
1). Size and content analysis of raw material
2). Capacity ( t/h)
3). Heating Source ( Coal, natural gas or diesel)
Upon we got your message we shall give you our favorable offer in short time.
