Automatic 30L Container Single or Double Station Blowing Molding Machine
| US$50,000.00-150,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GM-30L
Raw Material
PE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
After-sales Service
Online/Engineer
Plastic Material
PE ,PP , Ab,ABS
Transport Package
Film
Specification
30L
Trademark
GM
Origin
China
HS Code
8477301000
Production Capacity
20sets/Year
Product Description

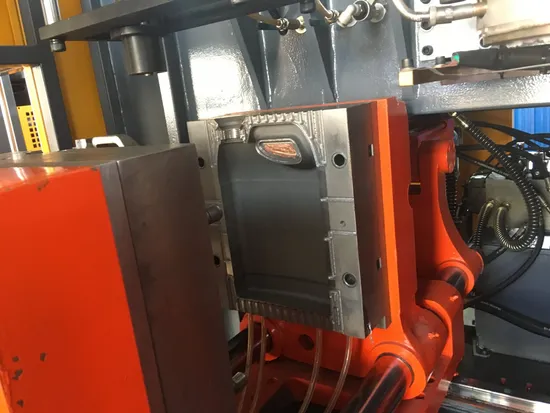

automatic 30L container single or double station blowing molding machine
Suitable for PE, PP, PVC, PETG, PS, EVA, ABS, TPU, etc all kinds of plastic hollow level;Can produce 5 ml to 5000 l plastic buckets, bottle, pot of hollow plastic containers and tools such as bags, counterweight plate, traffic facilities, medical apparatus and instruments, automobile tail, duct, desktop, plastic tray, airline seats and other kinds of hollow plastic products
Main parameters
| Specification | Unit | |
| Raw material | PE.PP.ABS...... | |
| Max size | L | 30 |
| capacity | Pc/hr | 50 |
| Dimension | M | 4.3×2.4×2.9 |
| Weight | ton | 8.2 |
| Clamping unit | ||
| Clamping force | KN | 150 |
| Template spacing | mm | 410-820 |
| Template size | mm | 550×600 |
| Max molds size(W*H) | mm | 550×580 |
| Thickness of molds | mm | 560 |
| Drive | ||
| screw fan power | KW | 0.18×3 |
| air pressure | Mpa | 0.8 |
| Air consumption | m³/min | 0.8 |
| Cooling water pressure | Mpa | 0.3 |
| Avg consumption power | KW | 35 |
| oil pump power | KW | 15 |
| Extrusion system | ||
| Screw diameter | mm | 75 |
| screw rate of L/D | L/D | 25 |
| Plastic capacity | Kg/hr | 90 |
| screw heating zone | zone | 4 |
| screw heating power | KW | 14.5 |
| extrusion motor power | KW | 30 |
| Die head | ||
| die head heating zone | Zone | 4 |
| die head heating power | KW | 9.5 |
| max extrusion mouth diameter | mm | 215 |
