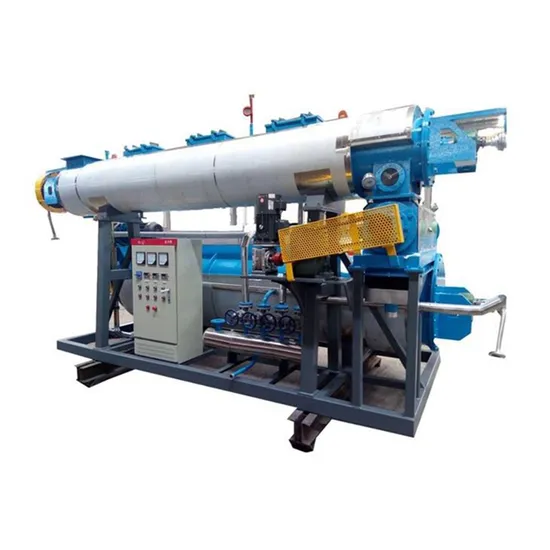

Small Scale Fish Meal Powder and Oil Making Machine and Equipment

Small Scale Fish Meal Powder and Oil Making Machine and Equipment

US$25,000.00-100,000.00 1 Set (MOQ)

Basic Info.

Model NO.
MS
Processing Object
Fish, Shrimp etc
Processing Technics
Mixing-before-Crushing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Powder
Warranty
One Year Warranty
Application
Poultry Farm
Raw Material
Fish Waste
Function
Making Fish Meal
Advantage
Easy Operation High Efficiency
Material
Durable Carbon Steel
Processing Types
Full-Automatic
Final Product
Fish Meal
Motor
Pure Copper Motor
Driven Way
Electricity / Gas
Feature
Long Servicing Time
Installation
Engineer′s Guidance
After-Sales Service Provided
Engineers
Processing
Processing Raw Fish Material
Main Equipment
Crusher-Pressing Machine-Cooker-Dryer
Color
Clients′ Requirement
Transport Package
Ply Wooden Case
Specification
24000*1500*2200mm
Trademark
MAOSU
Origin
China
Production Capacity
200 Sets Per Month

Product Description

small scale fish meal powder and oil making machine and equipment
Product Description
Fishmeal is a kind of commercial product that is processed by the fish after removing the edible parts for human consumption or lacking market value. Fishmeal is a kind of brown powder. Specifically, it is a product made by crushing, squeezing, drying, and degreasing the above-mentioned various types of dead fish, small fish and fish processed scraps, shrimp, crab, mealworm and so on. The purpose of fishmeal is that it is rich in protein and can be added to the animal feed.
Final Product
Raw Materials:
Whole fish(different kinds of fresh fish, fish heads, fish sausages and offals,fish waste),food waste, other aquatic products, like shrimp,loach,etc Product Parameters
Machine Name
Model
Installed power
Length
Diameter
Screw Conveyor
φ160×4000
1.1kw
4000mm
200mm
Cooking
φ377×3500
1.5kw
3500mm
1100mm
Pressing
φ219×1000
1.5kw
2000mm
300mm
Drying
φ820×3500
4kw
3500mm
1100mm


Fish Meal Prodution Proedures
Raw materials-Screw conveyor-Crushing-Steam cooker-Twin screw pressing-Oil water separation(fish oil)-Steam dryer-Hammer mill-Cooling-Fish meal
Crushing
Purpose: Crushing and thinning larger fish and fish heads to obtain blocks with a size of ≤5cm, thereby improving the efficiency of subsequent maturation and sterilization. Low noise, high crushing efficiency, automatic cleaning, complete confidentiality, can effectively avoid environmental pollution
Steam Cooker
The steamer is the key production equipment for fish meal processing. It is heated indirectly by steam or heat transfer oil to ensure that the raw fish is evenly cooked. Scope of application: the cooking and cooking of the leftovers from the processing of fish and aquatic products, The maturation, degreasing, shaping and curing of blood, internal organs and intestines in livestock slaughter.
Twin Screw Pressing
Adopting the principle of screw pressing, it is suitable for the pressing and dewatering of various high-humidity materials and the degreasing treatment of animal materials; The main shaft is made of 45# steel, and the spiral blades are welded by Q345 to improve the wear resistance of the equipment. The compression ratio is designed according to different materials to achieve the best dehydration and degreasing effect.
Steam Dryer
Scope of application: This machine is suitable for drying high-humidity materials such as feather meal, fish meal, blood meal, meat and bone meal, food waste, etc.
The outer jacket and the main shaft coil or steam box are used for steam to increase the heating area and the drying efficiency is high.
Water and oil separator

Packaging & Shipping
Company Profile
Zhengzhou Maosu Machinery Equipment Co,Ltd has been the professional manufacturer advanced and high efficient all kinds of food, pet food, snacks puffed food machinery more than 20 years already.We have a factory ourselves which size is more than 10000 square meters.There are more than 40 workers, including 10 high-skilled technicians,10 experienced engineers working for us. Quality comes first,Customers come first is our basic policy,create greatest value for Clients is our base of long-term cooperation with clients.After many years' development,our machines have large domestic and overseas markets.
FAQ 1.When will you ship the machine?
Normally 7-15 working days for single machines.The time of big production line will depends on detail situation.
2.How can I buy this machine?
First talk all details of machines with our sales person, then talked about the price, and choose most economic transportation way. then you can choose the payment terms.after we getting the deposit, we start to produce the machine. last, packing and shipping the machine to you.
3.Can you guarantee your quality?
Firstly, our factory has 20 years of professional production experience. Secondly, we have advanced production equipment and professional production workers to ensure the quality of the machines. Secondly, we have 10 engineers to guarantee after-sales service, installation, operation training and post-maintenance of the machines.And we take a test on every equipment before delivery.
4.How long is your guarantee ?
One Year guarantee. We shall supply free exchange for spare parts. After this period, we shall charge at low cost to keep after service. You will be welcome to contact us with any problem might occurred.
5.If we have problems when using this machine, what should we do?
If you have any problem, just contact us, we will help you to solve it, and if necessary, we will arrange our engineers to help you in your country.
6.How about your service?
24 hours online service to solve any problem. Your satisfy is our pursuit. Sincerely hope our cooperation .
