Plastic PP PE PS PVC PC Pallets Recycing Cutting Shredding Crusher

Plastic PP PE PS PVC PC Pallets Recycing Cutting Shredding Crusher

US$4,000.00-12,000.00 1 Set (MOQ)

Basic Info.

Model NO.
DGP
Material Processed
Plastic Flakes
Plastic Type
PE
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE, BV
Motor
Weg
Electronic Components
Kloeckner Moeller
Safety Switch
Schmersal
PLC Cabinet
Rittal
Bearings
Heavy Duty Bearings
Rotor
Wide Choice of Rotor Variations
Mechanical Material
Q355
Knife Materials
D2/ SKD11
Rotor Diameter
600-700mm
Stator Knives
2 Rows
Screen Size
6-16mm
Transport Package
Stretch Film/ Wood Pallet
Specification
DGP600-700
Trademark
DGM
Origin
Wuxi, China
HS Code
84778000
Production Capacity
2000sets Per Year

Packaging & Delivery

Package Size
2400.00cm * 2200.00cm * 1800.00cm
Package Gross Weight
5000.000kg

Product Description

Plastic PP PE PS PVC PC Pallets Recycling Cutting Shredding Crusher

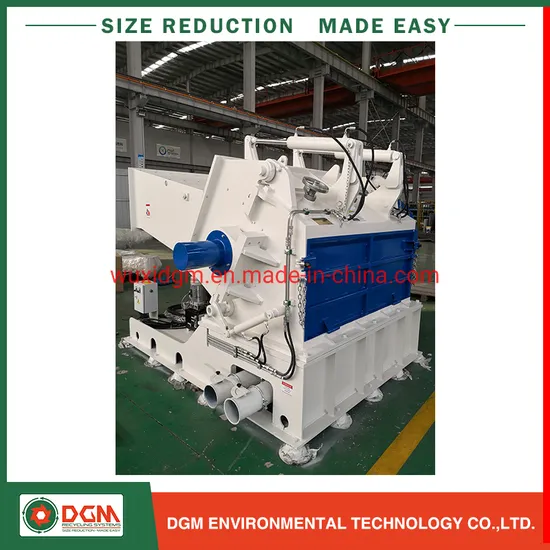

Descriptions The DGP Pipe/Profile Granulator has a near horizontal feeding hopper to allow easy feeding of long pipes or profiles - it has special feeding slots and an angled rotor that pulls the lengths of material into the cutting chamber. It has a centrally hinged two-piece cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re-sharpening and adjustment of the stator knives. There is a hinged screen cradle and hinged door for easy screen access.
The rotor is a heavy-duty paddle type design with knife cover plates to protect the blades when processing abrasive applications. The knife mounting bolts are screwed into the mounting plates as opposed to the rotor. All knives are manufactured from chrome nickel tool steel as standard, but when processing applications that are particularly abrasive the DGP granulators can be fitted with a specially designed wear-resistant rotor utilizing wear-resistant steel parts and hardox facing.
The v-cut cutting geometry offers distinct advantages over other rotor designs, including higher throughput with reduced power consumption, better quality cut, and lower noise levels. Specially designed knife setting jig means that the knives can be adjusted from outside the machine, significantly reducing the downtime required to change/set knives. The base frame has a solid welded construction with anti-vibration rubber feet to reduce vibration and noise. The drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. Integrated suction trough for material discharge.
An integrated rundown safety device prevents access to the rotor until it has come to a complete stop. A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
Specifications
ITEM UNIT DGP600/500 DGP560/700 DGP560/1000 DGP700/1400
Infeed Opening mm 440*440 640*280 910*280 1440*320
Rotor Diameter mm 600 560 560 700
Rotor Speed rpm 560 470 470 410
Main Motor Power kw 37-45 55-75 75-90 90-110
Rotor Knives pcs 5*2 5*2 5*2 5*4/7*4
Stator Knives row 2 2 2 2
Hydraulic Ram Power kw 1.5 1.5 1.5 1.5
Screen Size mm 6-30 6-30 6-30 6-30
Effective Working Area mm 516*498 716*650 985*650 1400*700
Dimensions A mm 2250 2400 2400 2480
B mm 2860 2200 2200 2320
C mm 1350 1800 2050 2400
D mm 820 1060 1480 1840
E mm 1620 1750 1750 1980

Layout
Features Near horizontal feeding hopper Specially designed deflector wedge V-cut technology Heavy duty bearings Oversized external bearing housings Knives are externally adjustable Robust welded steel construction Wide choice of rotor variations Electrical hydraulic control - to open housing Electrical hydraulic control - to screen cradle Replaceable wear plates Amp meter control
Benefits Block blades for deflector wedge Extra flywheel Winding protection Metal detector Metal separator Bespoke colour scheme Increased motor drive
Applications PLASTICS RUBBER WOOD BIOMASS PAPER ALTERNATIVE FUELS (RDF/SRF) DOMESTIC & COMMERCIAL WASTE
Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
Suppliers
Certificates
All of our shredders and granulators have been approved for CE certification.
Packaging & Loading
1. Several layers of plastic wrapping film and cardboard to protect the plastic recycling machine from dust and moisture.
2. Plastic packing strap belts are used to fasten wrapping film and machines and also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts when choosing by LCL, air, or international express.
4. Excellent logistic team to guarantee the shredder and granulators machines be safely shipped to customers appointed locations.
5. If you have any other requests for the packaging or loading, we will try our best to meet your demands.
FAQ
Q1: Are you a trading company or a factory?
DGM is a factory with 15 years of experience in plastic machinery manufacturing, and 25 years of experience in German technology.
Q2: Will you provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirements in time.
Q3: Is your after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service. We have an international network which ensures wherever you are in the world you receive localized high level support.
Our technical team has decades of experience in the field of size reduction, washing line and tire recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.

Q4: Where is your factory?
Address: No.10 Fushi Road, Huishan District, Wuxi City, Jiangsu, China.
Q5: What is your contact information?
T: +86 18762812155

Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
