High Precision Positioning and Measurement Antenna for Geodetic Survey, Differential Base Station, Deformation Monitoring
Basic Info.
Model NO.
LJ-HEM49A3
Material
ABS
Nature of Operation
Transmitting Antenna
Operating Wavelength
Microwave
Polarization
Rhcp
Sturcture Form
Wire Antenna
Usage Occasion
High Precision Measurement Fields
VSWR
≤2.0
Operating Current
<40mA
Noise Figure
<2.0
Axial Ratio
Elevation90°≤3dB
Front-Back Ratio
Elevation90°≥l8dB
Operating Voltage
3.3~18VDC
Base Antenna
Sihuan Array Antenna
Dimensionality
Two-Dimensional Antenna
Usage
Positioning and Measurement Antenna
Transport Package
Carton
Specification
Customized
Trademark
LIJIE
Origin
China
HS Code
8529109090
Production Capacity
120K PCS/Daily
Product Description

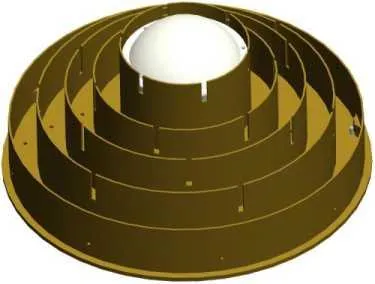

Product DescriptionProduct Name: Four- constellation full frequency external choke ring antenna(3D)
Product model: LJ-HEM49A3
Product features:
-The antenna is FCC certified
-The antenna adopts a multi-feed point design and a completely symmetrical structure with a stable phase center ;
-The low noise amplifier has high gain, and the satellite tracking ability is strong even in low elevation environment
Application fields:
It can be widely used in high precision measurement fields, such as geodetic survey, differential base station, deformation monitoring and other fields
| Model No | LJ-HEM49A3 |
| Frequency | GPS L1/L2/L5 BDS B1/B2/B3 GLONASS L1/L2 GALILEO El/E2/E5a/E5b |
| Polarization | R.H.C.P |
| Gain | elevation90° ≥7dBi |
| Axial ratio | elevation90°≤3dB |
| Front-back ratio | elevation90°≥l8dB |
| Phase center error | ±1mm |
| VSWR | <2.0 |
| LNA Gain | 50 ± 2dB |
| Noise figure | <2.0 |
| Voltage | 3.3~12VDC |
| Impedance | 50Ω |
| Operating current | <40mA |
| Cross polarization ratio | ±60°≥25 |
