Yk-2200 Automatic Nc Slitter Scorer Machine Online

Yk-2200 Automatic Nc Slitter Scorer Machine Online

US$50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YK-2200
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Corrugated Cardboard Production Line
Paper Thickness
Corrugated Cardboard
Function
Touch Screen
Characteristic
PLC Equipped
Parts
Alloyed Steel Thin-Blades
Feature
a Memory of Orders,Non-Stop Automatic Change
Transport Package
Plastic Film
Specification
Standard
Trademark
YIKE GROUP
Origin
China
HS Code
84413090
Production Capacity
50sets/Month

Product Description

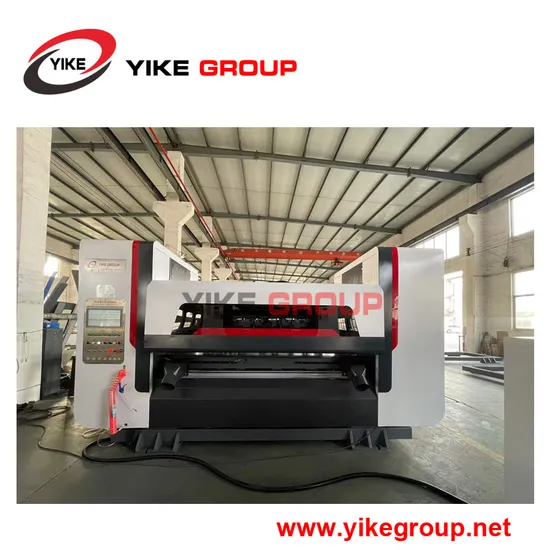

YK-2200 Automatic NC Slitter Scorer Machine Online
Product Description Function and Characteristic:
1. High-quality touch screen and PLC equipped composing the CNC system, connect to the production line.
2. High-quality beeline rail and high-precision screw conveying guarantees the precision.
3. A memory of orders, realizing non-stop automatic or manual change.
4. Speed synchronizes with board speed. Standard communication interface, easy to link with a management system.
5. Alloyed steel thin-blades, sharp and long life of over 8 million meters, auto sharpening
6. The knife for computer control automatic or manual knife sharpening, edge trimming knife, improve production efficiency.
7.Three types of scorers:convex to concave(three lines).convex to concave(five lines),convex to flat.
8. Two rows of scorers, realize minimum scorer spacing is 0mm.
9. Computer control score-depth, high-quality scorer, more steady.
10. Using the synchronous belt transmission, low noise, prolonging time.
11. Standard motorized body left-right rectification system 200mm

Product Parameters
Width 2200mm
Speed 150m/min
Blade&scorer 5&8
Order change 1-4s(servo type)
3-8s(invert type)
Precision ±0.5mm
Min. slitting 135mm
Min. scorer 0mm
Correction range 200mm
Power 30kw
Machine size 4300*1800*2450(mm)
Our Advantages
1. Slitter and scorer independent motor control, realize fast change.
2. Change order within 1-4s(servo type) and 3-8s(invert type).precise(±0.5mm)
3. Two rows of scorers, realize minimum scorer spacing is 0mm. Three types of scorers, convex to concave (three lines), convex to concave(five lines), and convex to flat.
4. Precised gapless synchronous transmission belt, precious encoder monitoring.
5. Famous brand in the world of electric elements. The application of two machines together can also realize non-stop order change.
